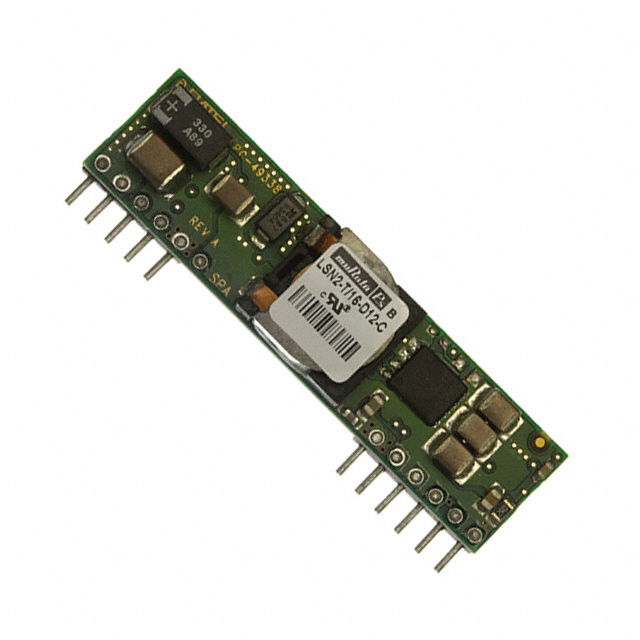

LSN2-T/16-D12-C

LSN2-T/16-D12-C is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC DC CONVERTER 0.75-5V 80W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for LSN2-T/16-D12-C

• Description：DC DC CONVERTER 0.75-5V 80W
• Series：LSN2
• Mfr：Murata Power Solutions Inc.
• Package：Tube
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：8.3V
• Voltage - Input (Max)：14V
• Voltage - Output 1：0.75 ~ 5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：16A
• Power (Watts)：80 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C
• Efficiency：94%
• Mounting Type：Through Hole
• Package / Case：12-SIP Module
• Size / Dimension：2.00" L x 0.32" W x 0.50" H (50.8mm x 8.1mm x 12.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-
