LT20-100J-RC

Fixed Inductors Overview

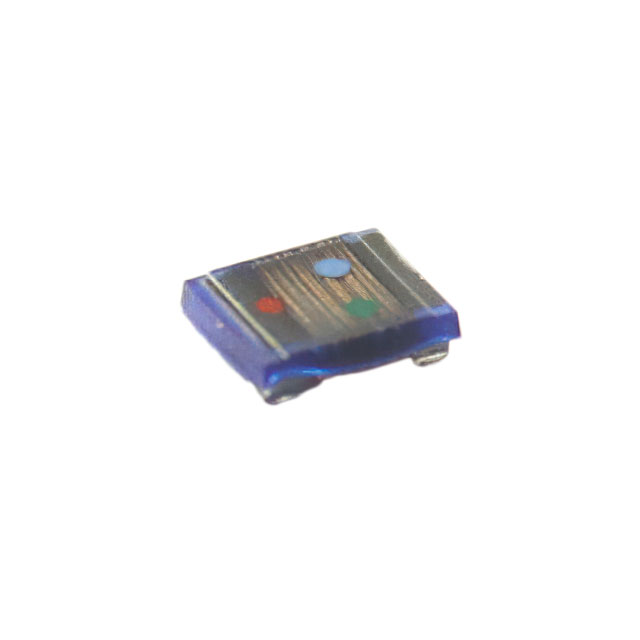

The LT20-100J-RC is a fixed ferrite core chip inductor manufactured by Allied Components International. It features an inductance value of 10uH with a tolerance of ±5%. The component utilizes a low-profile design suitable for surface-mount applications. It is lead-free and RoHS compliant, ensuring adherence to environmental standards. This specific part number belongs to the LT20 series of low-profile ferrite chip inductors.

Fixed Inductors Feature Summary

• Low profile construction for space-constrained designs
• Ferrite core technology for stable performance
• RoHS compliant and lead-free manufacturing

Fixed Inductors Applications

• General purpose signal filtering
• Power supply input/output filtering
• EMI suppression in compact electronics

Fixed Inductors Procurement Notes

Verify the exact inductance value of 10uH and the ±5% tolerance against your circuit requirements. Confirm that the low-profile package dimensions meet your PCB footprint constraints. Ensure the RoHS compliance status aligns with your environmental regulations. Cross-reference the manufacturer's datasheet for precise DC resistance and current ratings before finalizing procurement.

Fixed Inductors Selection Notes

Select this component when a 10uH inductance with tight ±5% tolerance is required in a low-profile form factor. Consider the LT20 series for applications prioritizing reduced height over high-power handling capabilities. Evaluate thermal performance and saturation characteristics relative to the specific application load. Compare against other ferrite chip inductors if higher current ratings are necessary.

Fixed Inductors Part Context

The LT20-100J-RC is part of the broader LT20 family of ferrite core chip inductors from Allied Components International. This series includes various inductance values and tolerance options, such as the LT20-220K-RC and LT20-100K-RC. The LT20 designation generally indicates a low-profile ferrite chip inductor designed for surface-mount technology (SMT) assembly processes.

Fixed Inductors Replacement Considerations

Direct substitutes may include other 10uH ±5% low-profile ferrite chip inductors from different manufacturers. Verify mechanical dimensions and electrical specifications carefully. Equivalent parts must match the inductance, tolerance, and package size. Consult distributor databases for cross-referenced components with identical pin configurations and mounting styles.
