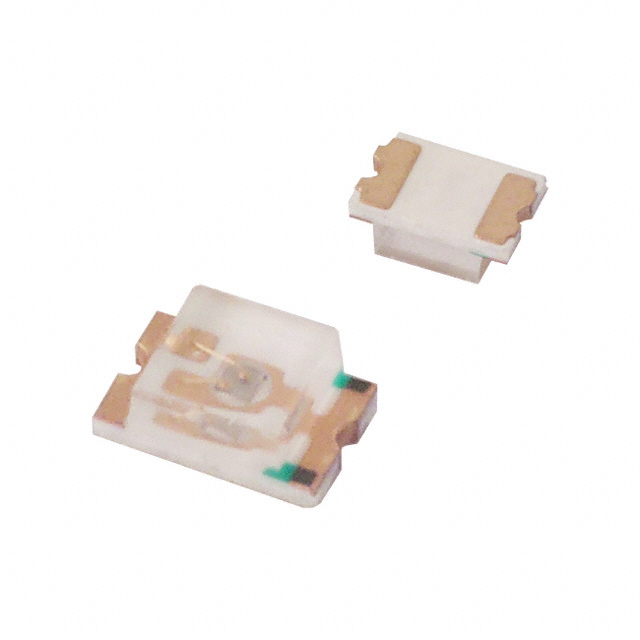

LTST-C171KSKT

$0.14

Description：LED YELLOW CLEAR CHIP SMD
Series：-
Mfr：Lite-On Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4738a3a28edf Category: LED Indication - Discrete Brand: Lite-On Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LTST-C171KSKT is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Lite-On Inc.. Its product description is LED YELLOW CLEAR CHIP SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LTST-C171KSKT

Description：LED YELLOW CLEAR CHIP SMD
Series：-
Mfr：Lite-On Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Yellow
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：50mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：130°
Mounting Type：Surface Mount
Wavelength - Dominant：587nm
Wavelength - Peak：588nm
Features：-
Package / Case：0805 (2012 Metric)
Supplier Device Package：Chip LED
Size / Dimension：2.00mm L x 1.25mm W
Height (Max)：0.90mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LTST-C171KSKT

LTST-C171KSKT

LED Indication - Discrete Overview

The LTST-C171KSKT is a single-color yellow surface-mount LED manufactured by Lite-On. It features a water-clear rectangular lens with dimensions of 1.4 mm x 1.25 mm and a height of 0.8 mm, housed in an 0805 (2012 metric) package. The component emits light at a peak wavelength of 587 nm with a viewing angle of 130 degrees. Electrical characteristics include a forward voltage of 2 V and a rated power dissipation of 75 mW. The device operates within a temperature range of -55 C to +85 C and exhibits moisture sensitivity.

LED Indication - Discrete Feature Summary

Utilizes AlInGaP chip technology for high-brightness yellow emission
Features a water-clear rectangular lens for optimized light transmission
Designed for standard SMD/SMT reflow soldering processes

LED Indication - Discrete Applications

General indicator lighting in electronic devices
Status indication on control panels
Backlighting applications requiring yellow illumination

LED Indication - Discrete Procurement Notes

Verify the specific suffix codes against official Lite-On documentation to ensure exact optical and electrical specifications match design requirements. Confirm RoHS compliance status through current datasheets as regulatory updates may occur. Check for humidity sensitivity handling instructions prior to assembly to prevent package damage during soldering. Validate that the ordering information aligns with the intended binning for luminous intensity.

LED Indication - Discrete Selection Notes

Select this component when a compact 0805 form factor is required for yellow signal indication. Consider the 130-degree viewing angle for broad visibility needs. Evaluate the 2 V forward voltage drop against available drive circuitry capabilities. Ensure the operating temperature range meets the environmental conditions of the target application without derating concerns.

LED Indication - Discrete Part Context

This part belongs to the LTST-C171 series of ultra-bright AlInGaP chip LEDs from Lite-On. The series offers various color options including red, green, and blue variants sharing similar physical dimensions. These components are widely used in consumer electronics and industrial equipment where reliable surface-mount signaling is necessary.
