LXES11DAA2-135

Common Mode Chokes Overview

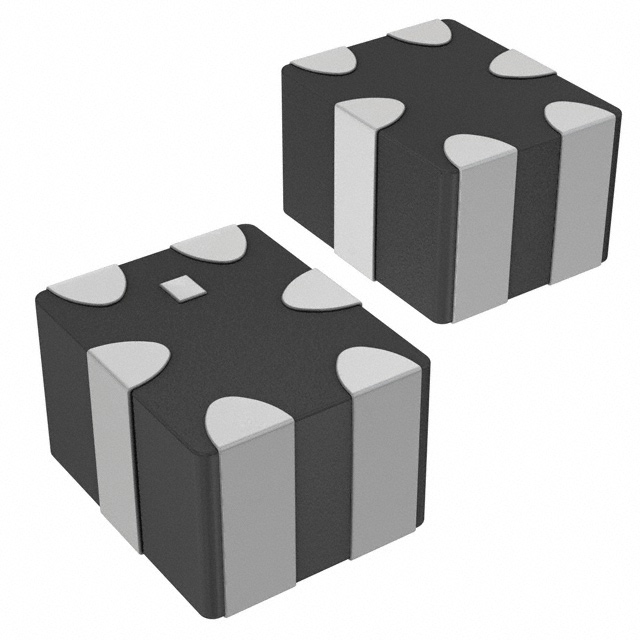

The LXES11DAA2-135 is a Common Mode Choke (CMC) manufactured by Murata Electronics, designed for high-speed transmission line protection. It features a 10-SMD, No Lead package with 10 pins and operates within a temperature range of -40°C. Key electrical specifications include a capacitance of 0.4 pF at 1 MHz, an operating supply voltage of 5 V, and ESD withstand voltages of 15 kV for both contact discharge and air gap. The device provides bidirectional channel protection with an impedance of 60 ohms.

Common Mode Chokes Feature Summary

• Provides common mode ESD filtering for high-speed transmission lines
• Offers bidirectional channel protection against electrostatic discharge
• Features low capacitance to maintain signal integrity in high-speed applications

Common Mode Chokes Applications

• High-speed data interface protection
• Common mode noise suppression in electronic circuits
• ESD protection for sensitive semiconductor components

Common Mode Chokes Procurement Notes

Verify the exact part number LXES11DAA2-135 against official Murata documentation to ensure correct component identification. Confirm that the 10-SMD No Lead package and 10-pin configuration match your PCB layout requirements. Ensure compatibility with the specified 5 V operating supply voltage and 0.4 pF capacitance for your specific high-speed application needs before procurement.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring robust common mode ESD protection for high-speed signals. The low 0.4 pF capacitance is critical for maintaining signal integrity in high-frequency applications. Ensure the design accommodates the 10-SMD No Lead package dimensions and 10-pin configuration. Verify that the 15 kV ESD withstand capability meets the environmental protection standards required for the end product.

Common Mode Chokes Part Context

This component belongs to the LXES**D series of common mode ESD filters produced by Murata Manufacturing Co., Ltd. It is specifically engineered for protecting high-speed transmission lines from electrostatic discharge events. The series includes various configurations tailored for different signal line counts and protection levels, with this model offering bidirectional protection for multiple channels.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Murata documentation or authorized distributors for verified cross-reference information before considering alternative components.
