LY T77K-J2M1-26-Z

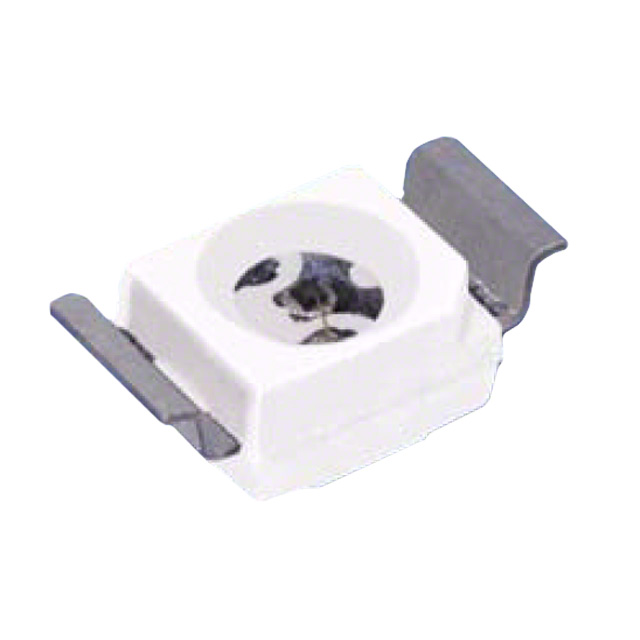

Description：LED YELLOW CLEAR SMD
Series：TOPLED® - Reverse Gullwing
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR)

SKU:19dd3f3dfd6f Category: LED Indication - Discrete Brand: ams-OSRAM USA INC.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LY T77K-J2M1-26-Z is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists ams-OSRAM USA INC.. Its product description is LED YELLOW CLEAR SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LY T77K-J2M1-26-Z

Description：LED YELLOW CLEAR SMD
Series：TOPLED® - Reverse Gullwing
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR)
Color：Yellow
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：14mcd
Lens Style：Round with Flat Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：1.8V
Current - Test：2mA
Viewing Angle：120°
Mounting Type：Surface Mount, Bottom Entry
Wavelength - Dominant：587nm
Wavelength - Peak：591nm
Features：-
Package / Case：2-SMD, Z-Bend
Supplier Device Package：SMD
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：2.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LY T77K-J2M1-26-Z

LY T77K-J2M1-26-Z

LED Indication - Discrete Overview

The LY T77K-J2M1-26-Z is a yellow surface-mount LED from the TOPLED Reverse Gullwing series by ams OSRAM. It features a 587nm peak wavelength and a typical forward voltage of 1.8V at 20mA test current. The component utilizes a PLCC-2 package with Z-bend leads, measuring 3.2mm in length and 2.1mm in height. It offers a 120-degree viewing angle and operates within a temperature range of -40°C to +100°C.

LED Indication - Discrete Feature Summary

Reverse gullwing lead configuration for enhanced mechanical stability
High brightness yellow emission with 120-degree viewing angle
RoHS compliant construction suitable for automated assembly

LED Indication - Discrete Applications

General electronic status indication
Instrument panel lighting
Consumer device signaling

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm exact binning and packaging specifications. Ensure compatibility with standard SMT reflow profiles and check for moisture sensitivity level requirements prior to storage and handling.

LED Indication - Discrete Selection Notes

Select this component when a compact yellow indicator with reverse gullwing leads is required. Consider the 1.8V forward voltage drop and 20mA operating current for circuit design. Verify that the PLCC-2 footprint matches the target PCB layout constraints.

LED Indication - Discrete Part Context

This part belongs to the TOPLED Reverse Gullwing family, designed for high-volume surface mount applications. It provides a reliable optical solution for status indication where space efficiency and mechanical robustness are prioritized over automotive qualification standards.
