LY20-22P-DLT1-P1E-BR

Headers, Male Pins Overview

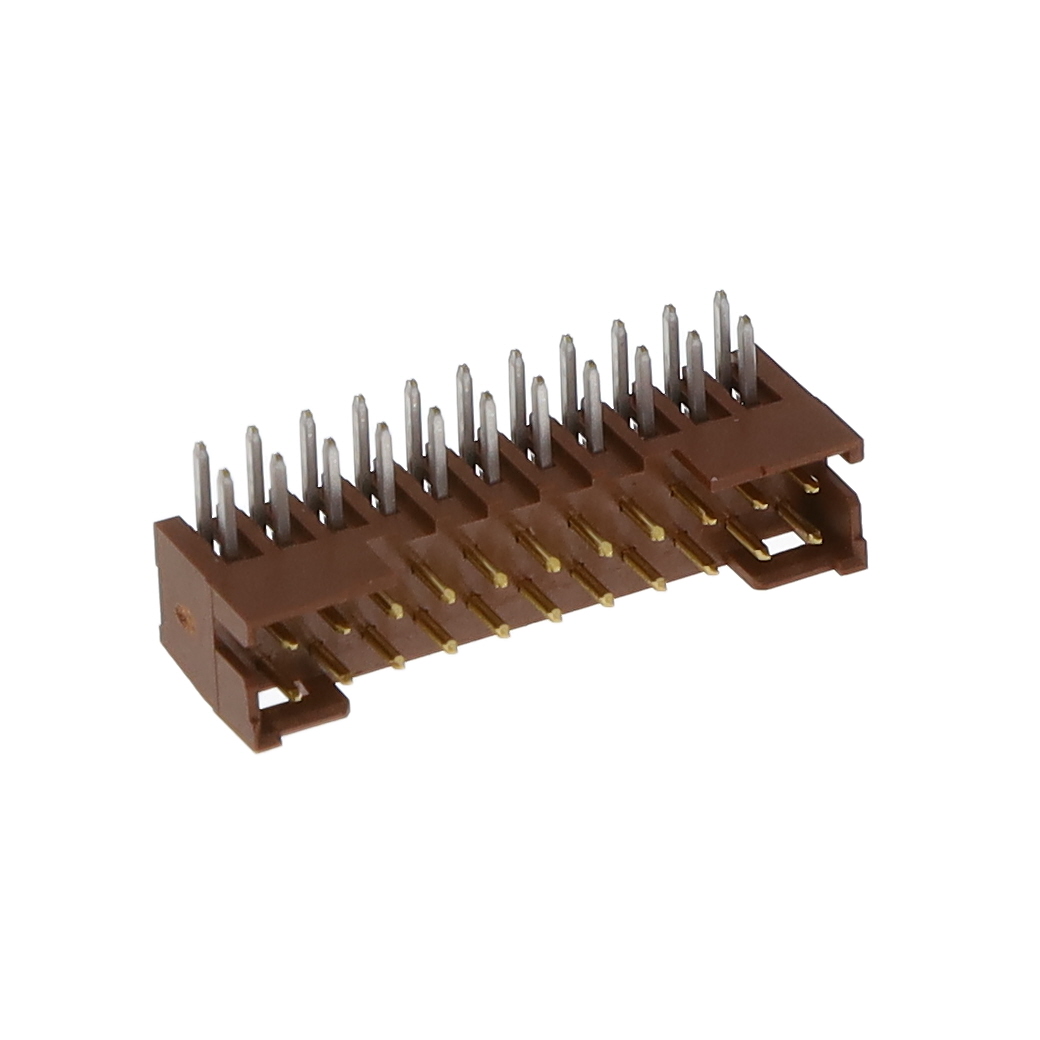

The JAE Electronics LY20-22P-DLT1-P1E-BR is a board connector featuring 22 contacts arranged in two rows. It utilizes a 2 mm (0.079 inch) pitch and employs male pin terminals for right-angle through-hole soldering. The housing is constructed from brown nylon with a shrouded design to ensure proper alignment. This component operates within a temperature range of -40°C to +85°C and supports a current rating of 3 A at a voltage of 1 kV.

Headers, Male Pins Feature Summary

• Shrouded header design ensures precise mating alignment
• Right-angle orientation facilitates compact board layouts
• Gold-plated copper alloy contacts provide reliable conductivity

Headers, Male Pins Applications

• General purpose electronic interconnections
• Industrial control system circuit boards
• Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify the specific contact count and pitch requirements against the target PCB footprint before ordering. Confirm that the right-angle through-hole mounting style aligns with the assembly process capabilities. Ensure the operating environment remains within the specified thermal limits for long-term reliability.

Headers, Male Pins Selection Notes

Select this part when a 22-position, 2-row header is required for space-constrained applications. The right-angle configuration allows for vertical stacking or side connections. Verify compatibility with corresponding socket housings in the same series to maintain mechanical integrity.

Headers, Male Pins Part Context

This component belongs to the LY series of headers and wire housings manufactured by JAE Electronics. The series offers various position counts and configurations to support diverse connectivity needs. The specific model integrates standard industrial specifications for durability and electrical performance.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 22-position, 2mm pitch right-angle headers from compatible manufacturers. Verify that alternative parts match the shrouded design and gold plating specifications to ensure equivalent performance.
