M22-2010346

Headers, Male Pins Overview

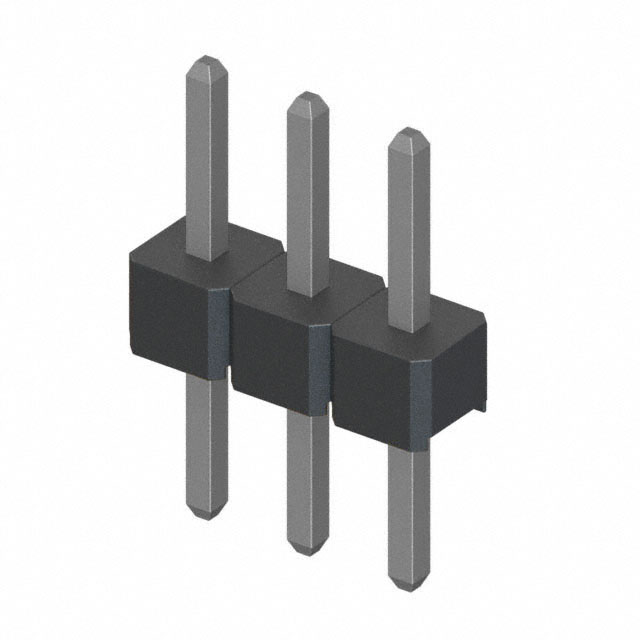

The M22-2010346 is a vertical pin header connector from the Harwin M22 series, designed for board-to-board applications. It features a 2mm pitch and houses three male pins arranged in a single row. The connector utilizes phosphor bronze contacts with gold plating for reliable signal transmission. Insulation is provided by black nylon (PA6T), rated UL94 V-0 for flame resistance. Designed for through-hole mounting, it supports a maximum current of 1A per contact and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Vertical orientation facilitates direct PCB integration
• Gold-plated phosphor bronze contacts ensure durability
• UL94 V-0 rated nylon insulation provides thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Electronic module assembly
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm pin count and orientation. Ensure compatibility with mating connectors regarding pitch and contact type. Check for RoHS compliance requirements if applicable to your manufacturing standards. Confirm lead times with authorized distributors as production schedules may vary.

Headers, Male Pins Selection Notes

Select this component when a low-profile, vertical header with a 2mm pitch is required. It is suitable for applications needing robust electrical connections with minimal footprint. Consider the single-row configuration for space-constrained designs. Verify that the 1A current rating meets the circuit requirements.

Headers, Male Pins Part Context

This connector belongs to the M22 series, known for its compact design and high reliability. The series offers various configurations including different pin counts and orientations. The M22-2010346 specifically addresses needs for simple, vertical interconnects in dense electronic assemblies.

Headers, Male Pins Replacement Considerations

Compatible mating sockets include models such as M22-6361042 and M22-6341042. These counterparts share the same 2mm pitch and are designed to interface correctly with the male pins of the M22-2010346 header.
