M22-2010446

Headers, Male Pins Overview

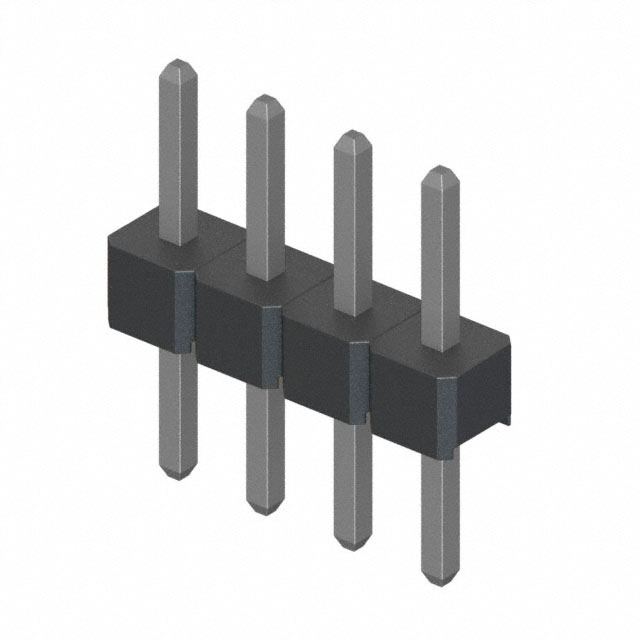

The M22-2010446 is a male pin header from the Harwin M22 series, designed for through-hole mounting. It features a single row with four positions and a 2 mm (0.079 in) pitch. The connector utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. Rated for 1 A current and 500 VAC voltage, it operates within a temperature range of -40°C to +105°C. The housing is constructed from black nylon with UL 94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Gold-plated phosphor bronze contacts provide durable conductivity
• Nylon insulation housing ensures UL 94 V-0 flame resistance
• Through-hole straight installation facilitates PCB integration

Headers, Male Pins Applications

• Board-to-board interconnections
• General electronic equipment signal routing
• Industrial control system interfaces

Headers, Male Pins Procurement Notes

Verify the specific contact plating thickness and material composition against the official datasheet before procurement. Confirm that the single-row configuration matches the design requirements. Ensure compatibility with mating sockets regarding pitch and retention force. Check RoHS compliance status for regulatory adherence.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header is required for space-constrained designs. The 2 mm pitch offers higher density compared to standard 2.54 mm connectors. Consider the 1 A current rating for power distribution limits. Evaluate the straight orientation for vertical stacking or direct board mounting needs.

Headers, Male Pins Part Context

This part belongs to the M22 series, characterized by its compact 2 mm pitch and robust mechanical design. The series supports various configurations including single and double rows with different pin counts. It is engineered for high-reliability applications requiring stable electrical connections in demanding environments.

Headers, Male Pins Replacement Considerations

Compatible mating sockets include M22-6361042 and M22-6341042 for surface mount options. Verify that substitute headers maintain identical 2 mm pitch and contact geometry to ensure proper engagement.
