M22-2030546

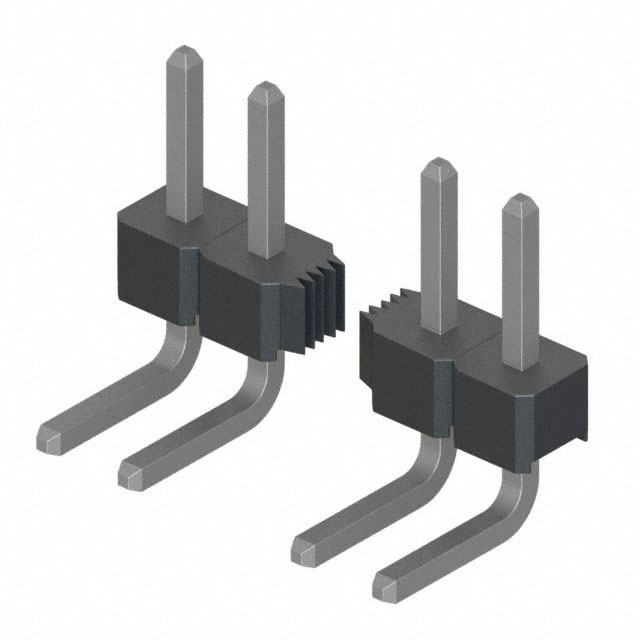

Description：CONN HEADER R/A 5POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:d4d7c8d89520 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2030546 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 5POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2030546

Description：CONN HEADER R/A 5POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：5
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2030546

M22-2030546

Headers, Male Pins Overview

The Harwin M22-2030546 is a single-row male pin header from the M22 series, designed for board-to-board connections. It features a 2mm pitch and accommodates 5 positions. The connector utilizes gold-plated phosphor bronze contacts housed in a nylon body, supporting a voltage rating of 500V and a current capacity of 1A. It employs a right-angle orientation with through-hole termination for PCB mounting. The unit operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

Right-angle configuration facilitates compact vertical circuit board stacking.
Gold-plated phosphor bronze contacts ensure reliable signal transmission and corrosion resistance.
Nylon housing provides structural integrity and electrical insulation.

Headers, Male Pins Applications

Board-to-board interconnects
High-density electronic assemblies
Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm availability status and manufacturing lifecycle stage. Ensure that the required contact plating and housing material specifications align with the intended application environment. Cross-reference datasheet parameters for thermal and electrical ratings prior to final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a right-angle, single-row male header with a 2mm pitch is required for board-to-board applications. Confirm that the 5-position count matches the design requirements. Verify compatibility with mating female sockets within the M22 series and ensure the through-hole mounting style suits the target PCB layout constraints.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, which offers high-density rectangular connectors. The series supports various configurations including headers, housings, and terminals. The M22-2030546 specifically addresses needs for rigid, right-angle interconnections in space-constrained electronic designs requiring robust mechanical and electrical performance.
