M22-2040346

Headers, Male Pins Overview

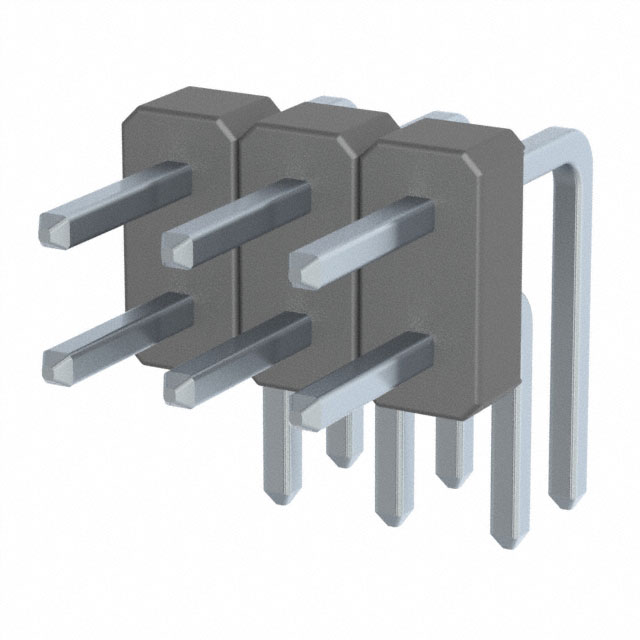

The M22-2040346 is a dual in-line (DIL) pin header from the Harwin M22 series, designed for through-hole mounting on printed circuit boards. It features a 2-row configuration with a total of 6 positions (3+3), utilizing a 2.00 mm pitch. The connector employs male pins with tin plating and phosphor bronze contacts, housed in a black nylon body. Rated for 1 A current and 650 VAC voltage, it operates within a temperature range of -40°C to +105°C. The right-angle design facilitates horizontal board-to-board connections.

Headers, Male Pins Feature Summary

• Dual in-line structure with 3+3 position layout for compact high-density interconnects
• Right-angle through-hole termination for efficient PCB space utilization
• Tin-plated phosphor bronze contacts ensuring reliable signal transmission
• Nylon housing with UL 94 V-0 flammability rating for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections in industrial control systems
• Signal routing in telecommunications equipment
• Internal connectivity in consumer electronics assemblies
• Automotive electronic module interfaces

Headers, Male Pins Procurement Notes

Verify the specific contact plating finish and row configuration against project requirements, as datasheets may list variations such as gold or tin options within the same part number family. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability can fluctuate based on manufacturing cycles and regional stock levels.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle DIL header is required for 2mm pitch applications. Ensure the mating connector matches the 3+3 pin count and compatible contact geometry. Consider the tin plating for general-purpose use; opt for gold variants if higher corrosion resistance is needed, though that may involve different part numbers.

Headers, Male Pins Part Context

Part of the M22 series, known for its slim profile and robust mechanical design. This series supports various configurations including single and double rows, with options for shrouded or unshrouded housings. The M22-2040346 specifically addresses needs for horizontal, right-angle connections in space-constrained environments.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Harwin M22 series headers with identical 6-position, 2-row, right-angle specifications. Verify compatibility with mating connectors before substitution. Generic equivalents require matching pitch, current rating, and mounting style.
