M22-2040605

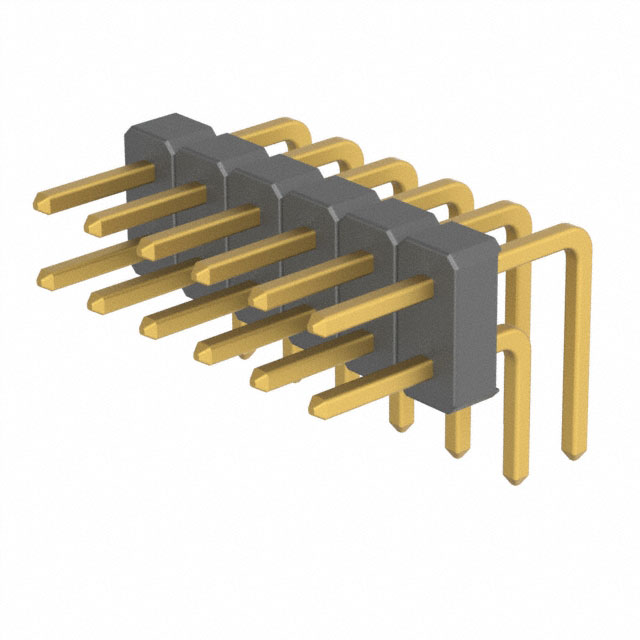

Description：CONN HEADER R/A 12POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:4dc3d6157752 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2040605 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 12POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2040605

Description：CONN HEADER R/A 12POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.157" (4.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2040605

M22-2040605

Headers, Male Pins Overview

The M22-2040605 is a Harwin Inc. header connector from the M22 series, designed for board-to-board applications. It features a 2-row configuration with 12 positions and a 2 mm pitch. The component utilizes male pin contacts with gold plating and employs horizontal solder termination for surface mounting. Constructed with a black nylon housing, it supports right-angle installation and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

Dual-row layout providing high-density interconnect capability in a compact footprint
Gold-plated phosphor bronze contacts ensure reliable signal transmission and corrosion resistance
Horizontal orientation facilitates efficient space utilization on printed circuit boards

Headers, Male Pins Applications

High-density electronic assemblies requiring robust board-to-board connections
Industrial control systems operating in demanding thermal environments
Automotive electronics modules needing reliable signal integrity

Headers, Male Pins Procurement Notes

Verify the specific suffix code against official Harwin documentation to confirm exact contact plating and housing material specifications. Ensure compatibility with mating receptacles regarding row count and pitch dimensions before procurement. Confirm that the selected variant meets all required environmental certifications for the target application.

Headers, Male Pins Selection Notes

Select this model when a low-profile, dual-row header with horizontal termination is required. The 2 mm pitch allows for dense circuit layouts while maintaining adequate spacing. Verify that the current rating and voltage withstand capabilities align with the system's electrical requirements and operational conditions.

Headers, Male Pins Part Context

This component belongs to the M22 series, which offers various configurations including single and double rows with different termination styles. The series is known for its reliability in harsh environments and compliance with RoHS standards. This specific part represents a standard horizontal header option within the broader product family.
