M22-2041705

Headers, Male Pins Overview

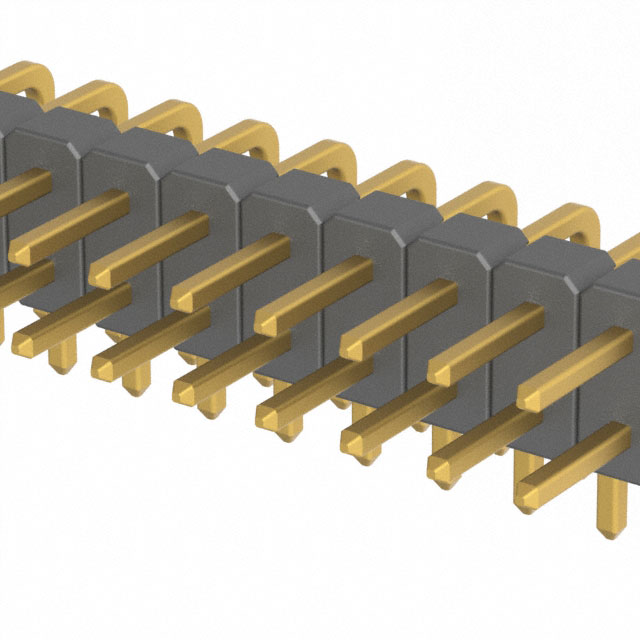

The Harwin M22-2041705 is a male pin header from the M22 series, designed for board-to-board interconnection. It features a 2mm pitch and a dual-row configuration with 34 positions (17+17). The connector utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. Constructed with a nylon insulator, it supports through-hole mounting in an angled orientation. Rated for 1A current and 650VAC dielectric withstand voltage, it operates within a temperature range of -25°C to +105°C.

Headers, Male Pins Feature Summary

• Dual-row male pin header design optimized for high-density PCB applications
• Gold-plated phosphor bronze contacts provide durable electrical connectivity
• Nylon housing offers thermal stability and UL94 V-0 flammability rating
• Angled through-hole termination facilitates efficient board layout

Headers, Male Pins Applications

• Industrial control systems requiring robust board-to-board connections
• High-density electronic assemblies with height constraints
• Automotive electronics interfaces demanding reliability
• Consumer device internal interconnects

Headers, Male Pins Procurement Notes

Verify the specific part number M22-2041705 against official Harwin documentation to confirm the 34-position count and angled orientation. Ensure compatibility with mating receptacles in the M22 series. Check for RoHS compliance status in the latest datasheet before procurement.

Headers, Male Pins Selection Notes

Select this component when a 2mm pitch dual-row male header is required for angled through-hole mounting. Consider the 1A current rating and 650VAC insulation requirements. Verify that the 34-pin configuration matches the circuit design needs compared to other row lengths in the M22 series.

Headers, Male Pins Part Context

The M22 series by Harwin represents a line of industry-standard connectors known for compactness and reliability. This specific model belongs to the male header category, complementing the series' female socket offerings. The series is engineered for applications demanding high connection density and durability in harsh environments.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2mm pitch, dual-row, 34-pin, angled, through-hole specifications. Verify contact material and plating thickness. Cross-reference with Harwin's official replacement guide or similar series like M22 variants with identical mechanical dimensions.
