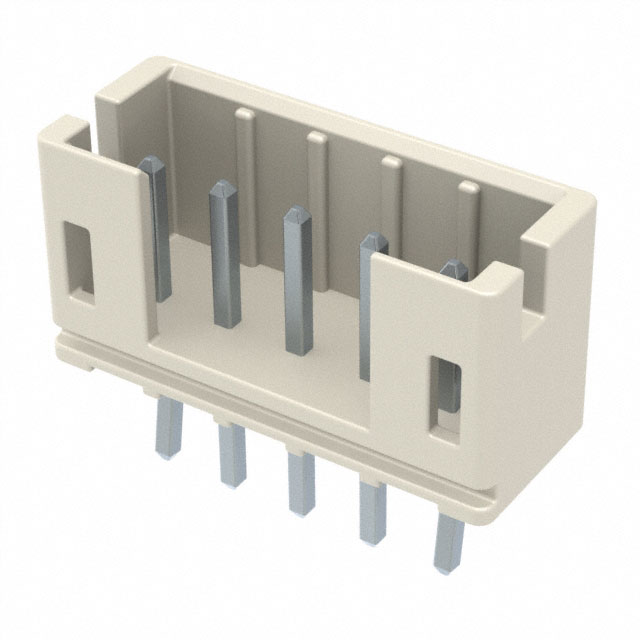

M22-2200546

Description：CONN HEADER VERT 5POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Tube

SKU:78cc19abf273 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2200546 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 5POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2200546

Description：CONN HEADER VERT 5POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：5
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Kinked Pin, Solder
Fastening Type：Detent Lock
Contact Length - Mating：-
Contact Length - Post：0.134" (3.40mm)
Overall Contact Length：-
Insulation Height：0.240" (6.10mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA9T), Nylon 9T
Features：-
Operating Temperature：-25°C ~ 85°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：2A per Contact
Voltage Rating：100V

Headers, Male Pins datasheet and documents for M22-2200546

M22-2200546

Headers, Male Pins Overview

The Harwin M22-2200546 is a vertical pin header from the M22 series, designed for board-to-cable or board-to-wire connections. It features a single row with five positions and a 2mm pitch. The connector utilizes through-hole termination for secure PCB mounting. Contacts are made of phosphor bronze with gold plating to ensure reliable signal transmission. The housing is constructed from nylon, providing mechanical stability and electrical insulation.

Headers, Male Pins Feature Summary

Vertical orientation facilitates compact board-to-cable integration
Gold-plated phosphor bronze contacts ensure durable conductivity
Nylon housing provides robust mechanical support and insulation

Headers, Male Pins Applications

Board-to-cable interconnects
Board-to-wire connections
Compact electronic assemblies requiring vertical headers

Headers, Male Pins Procurement Notes

Verify the specific contact count and row configuration against project requirements before ordering. Confirm that the vertical orientation aligns with the assembly layout constraints. Ensure compatibility with mating cables or wires intended for connection. Check for any specific environmental ratings if operating in extreme conditions.

Headers, Male Pins Selection Notes

Select this component when a low-profile vertical connection is required between a PCB and flexible cabling. The 2mm pitch offers a balance between density and ease of handling. Consider the gold plating for applications requiring high reliability over multiple mating cycles or long-term storage.

Headers, Male Pins Part Context

This part belongs to the Harwin M22 series, which specializes in versatile pin headers for various interconnect needs. The series includes options for different pitches, rows, and orientations. The M22-2200546 specifically addresses the need for simple, reliable vertical connections in space-constrained designs.
