M22-2210446

Headers, Male Pins Overview

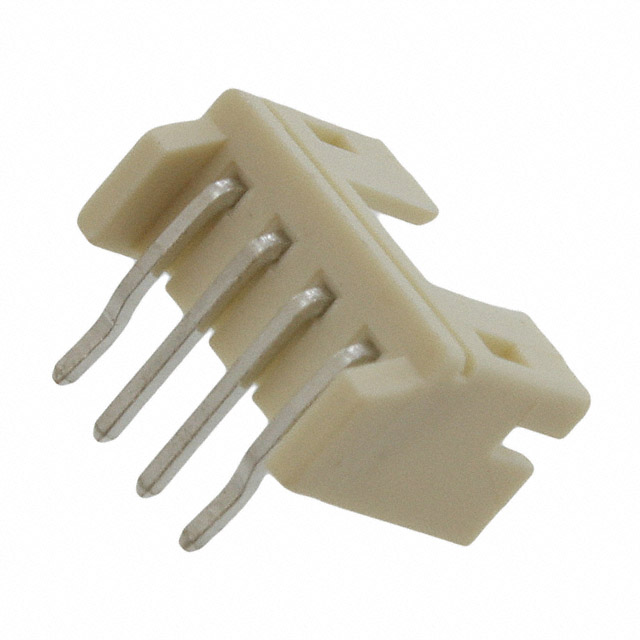

The M22-2210446 is a male pin header from the Harwin M22 series, designed for board-to-board connections. It features a 2 mm pitch and a single row with four positions. The connector utilizes phosphor bronze contacts with gold plating to ensure reliable electrical performance. Rated for 2 A per contact and 500 VAC, it operates within a temperature range of -25°C to 85°C. The housing is made of natural-colored nylon with a UL 94 V-0 flammability rating. It employs right-angle through-hole solder termination with a 3.5 mm tail length.

Headers, Male Pins Feature Summary

• Gold-plated phosphor bronze contacts provide durable conductivity
• Right-angle design facilitates compact PCB layout integration
• Nylon housing meets UL 94 V-0 safety standards

Headers, Male Pins Applications

• Embedded PC systems
• Industrial control devices
• Communication equipment

Headers, Male Pins Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheets. Confirm that the part number matches the specific obsolescence status and regional availability constraints. Ensure storage conditions maintain integrity before installation.

Headers, Male Pins Selection Notes

Select this component for applications requiring right-angle male headers with high current density. The 2 mm pitch supports dense circuit layouts. Verify compatibility with mating sockets in the M22 series. Consider thermal limits when designing for enclosed environments.

Headers, Male Pins Part Context

This part belongs to the M22 series, which provides industrial-standard connectors for high-density PCB applications. The series offers various configurations including single and double rows with different pin counts. It is widely used in embedded computing and large electronic systems.

Headers, Male Pins Replacement Considerations

Check for direct substitutes within the M22 family such as M22-2030405 or M22-2040446. Verify mechanical dimensions and electrical ratings match before substitution. Consult manufacturer documentation for updated availability status.
