M22-2410346 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 6POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2410346

Description：CONN HEADER R/A 6POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.157" (4.00mm)
Contact Length - Post：0.110" (2.79mm)
Overall Contact Length：-
Insulation Height：0.169" (4.30mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2410346

M22-2410346

Headers, Male Pins Overview

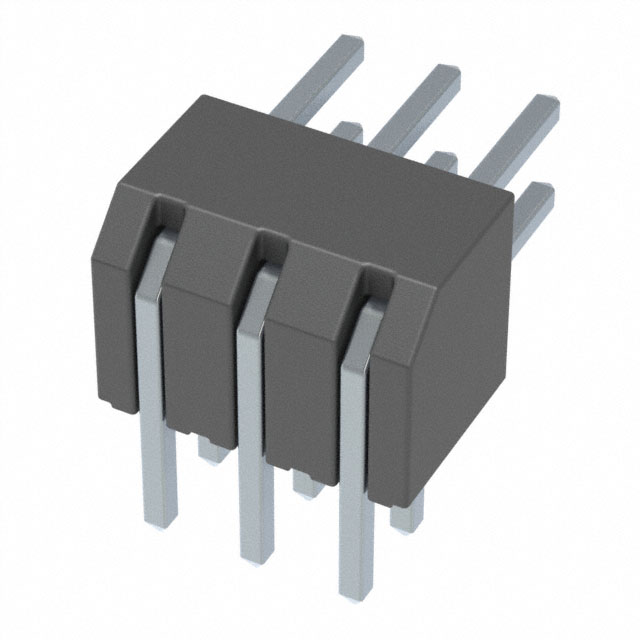

The M22-2410346 is a pin header from the Harwin M22 series, designed for through-board mounting. It features a 2 mm pitch and consists of two rows with three positions per row (3+3 way). The connector utilizes tin-plated contacts and is oriented at a 90-degree angle relative to the printed circuit board. This component is classified as a pin strip within the headers and wire housings product category.

Headers, Male Pins Feature Summary

Dual-row configuration providing six connection points in a compact footprint
Right-angle orientation facilitates space-efficient board layout integration
Tin contact plating ensures reliable electrical conductivity

Headers, Male Pins Applications

General electronic equipment interconnections
Industrial control system wiring
Consumer electronics assembly

Headers, Male Pins Procurement Notes

This component is officially designated as End-of-Life by the manufacturer. Distribution channels indicate restricted availability or discontinuation status. Verify current stock levels and obsolescence notifications directly with authorized suppliers before finalizing procurement plans.

Headers, Male Pins Selection Notes

Engineers should evaluate alternative components within the M22 series that remain in active production. Considerations must include matching pitch, row count, and termination style requirements to ensure seamless replacement without redesigning the host printed circuit board.

Headers, Male Pins Part Context

The M22 series represents a range of high-density connectors known for robust mechanical performance. This specific part belongs to the pin header subset, offering standardized spacing for reliable signal transmission across various industrial and commercial applications requiring secure board-to-board connections.
