M22-2510346

Headers, Male Pins Overview

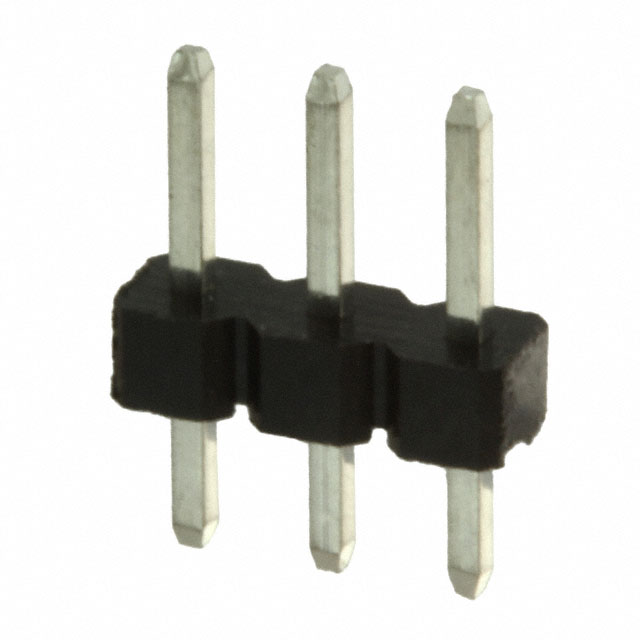

The M22-2510346 is a vertical pin header assembly manufactured by Harwin Inc. It features a 2mm (0.079 inch) pitch and contains 3 positions arranged in a single row. The connector utilizes male pins with a through-hole termination style for PCB mounting. The housing is constructed from black insulating material, consistent with the M22 series design standards.

Headers, Male Pins Feature Summary

• Vertical orientation facilitates standard board-to-board or cable connections.
• Single row configuration provides compact linear connectivity.
• Through-hole soldering ensures secure mechanical attachment to printed circuit boards.

Headers, Male Pins Applications

• General electronic interconnects
• Board-to-board signal routing
• Cable harness termination

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current production status and availability. Ensure that the required contact plating and insulation material specifications align with the target application environment before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, vertical header with a 2mm pitch is required. The three-position capacity suits applications needing minimal I/O density. Confirm that the through-hole footprint matches the design layout constraints.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, which is characterized by a 2mm pitch and robust construction. The series offers various configurations including horizontal and vertical headers, catering to diverse space-constrained electronic designs requiring reliable signal transmission.

Headers, Male Pins Replacement Considerations

Consult official Harwin catalogs for direct substitutes within the M22 family. Verify compatibility regarding pitch, row count, and termination method before considering alternative manufacturers' products.
