M22-2510505

Headers, Male Pins Overview

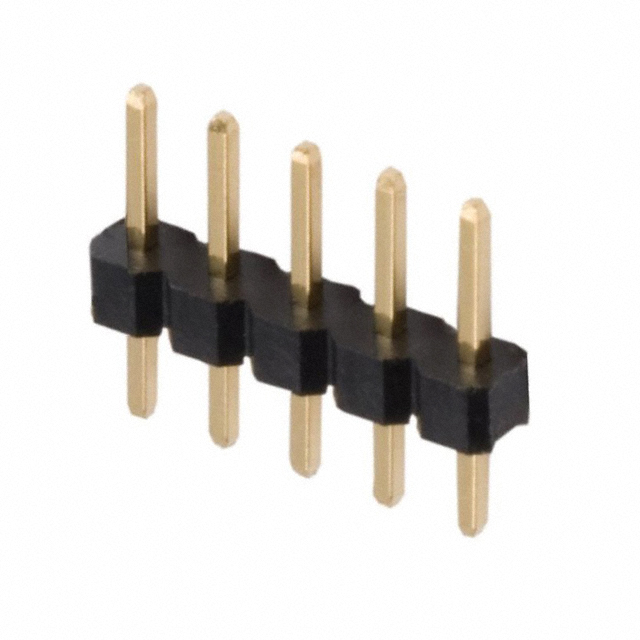

The Harwin M22-2510505 is a single-row pin header connector designed for board-to-board applications. It features a 2mm pitch and provides five contacts with through-hole termination. The connector utilizes phosphor bronze contacts with gold plating to ensure reliable electrical performance. Rated for 2A current, it operates within a temperature range of -40°C to 105°C. The housing is constructed from black polyamide (PA6T) material, meeting UL94 V-0 flammability standards. This straight-mount component offers stacking heights of 5.9mm and 8.6mm when mated.

Headers, Male Pins Feature Summary

• Designed for high-density board-to-board interconnections using a compact 2mm pitch configuration.
• Features durable phosphor bronze contacts with gold plating to enhance conductivity and connection reliability.
• Constructed with UL94 V-0 rated polyamide insulation capable of withstanding standard reflow soldering processes.

Headers, Male Pins Applications

• High-density PCB interconnects
• Industrial control systems
• Telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific part number M22-2510505 against official Harwin documentation to confirm availability and specifications. Ensure that the required contact count, pitch, and mounting style align with the design requirements. Check for any updated environmental compliance certifications or RoHS status directly from the manufacturer before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this connector when a single-row, straight-mount header is required for board-to-board connections. The 2mm pitch suits designs needing moderate density without excessive height constraints. Verify that the 2A current rating and operating temperature range meet the system's electrical and thermal demands. Confirm compatibility with mating socket components in the same M22 series.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, which offers various configurations including single and double rows with different contact counts. The series is engineered for industrial applications requiring robust connectivity. The M22-2510505 specifically represents a five-position variant optimized for vertical mounting on printed circuit boards.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Consider other variants within the Harwin M22 series if exact matches are unavailable, ensuring identical pitch, row count, and termination type.

Headers, Male Pins FAQ

What is the mating stacking height for this connector?

The M22-2510505 offers mating stacking heights of 5.9mm and 8.6mm depending on the specific configuration.

Is this connector suitable for surface mount assembly?

No, the M22-2510505 is designed for through-hole mounting only.
