M22-2510705

Headers, Male Pins Overview

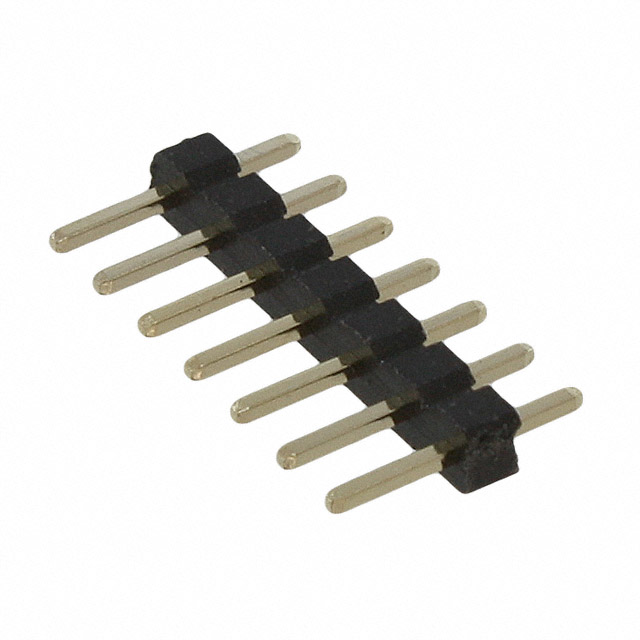

The M22-2510705 is a 7-position single-row header connector from the Harwin M22 series. It features a 2.00mm (0.079 inch) pitch and utilizes male pin contacts with gold plating for reliable signal transmission. The housing is constructed from black polyamide (PA6T/nylon 6T) insulation, rated UL94 V-0 for flame resistance. Designed for through-hole mounting, it offers an insulation height of 1.50mm (0.059 inch). The connector supports a mating contact length of 5.00mm and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Single-row configuration with secure latching mechanism for stable connection
• High-temperature resistant housing material ensuring durability in demanding environments
• Gold-plated phosphor bronze contacts providing low resistance and corrosion protection

Headers, Male Pins Applications

• Board-to-board interconnections requiring high reliability
• Industrial control systems operating in elevated temperatures
• Consumer electronics utilizing compact rectangular connector systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to ensure correct pin count and termination style. Confirm that the required mating components are compatible with the 2.00mm pitch and square pin shape specifications. Check RoHS compliance status and lead times directly with authorized distributors or the manufacturer before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a single-row, through-hole header with 7 positions is required. Ensure the application environment stays within the -40°C to 105°C operating range. Verify that the PCB layout accommodates the 2.00mm pitch and that mating connectors match the male pin interface. Consider the UL94 V-0 rating if fire safety standards are critical for the assembly.

Headers, Male Pins Part Context

This part belongs to the M22 series of 2.00mm pitch connectors by Harwin Inc., designed for robust electronic interconnects. The series includes various configurations such as headers, sockets, and wire housings. The M22-2510705 specifically serves as a male pin header, complementing socket counterparts like the M22-6361042 for complete system connectivity solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 2.00mm pitch, 7-position count, and single-row through-hole format. Verify compatibility with existing mating hardware. No direct cross-manufacturer equivalents are confirmed in public documentation; consult Harwin for approved alternative part numbers within the same product family.
