M22-2510805

Headers, Male Pins Overview

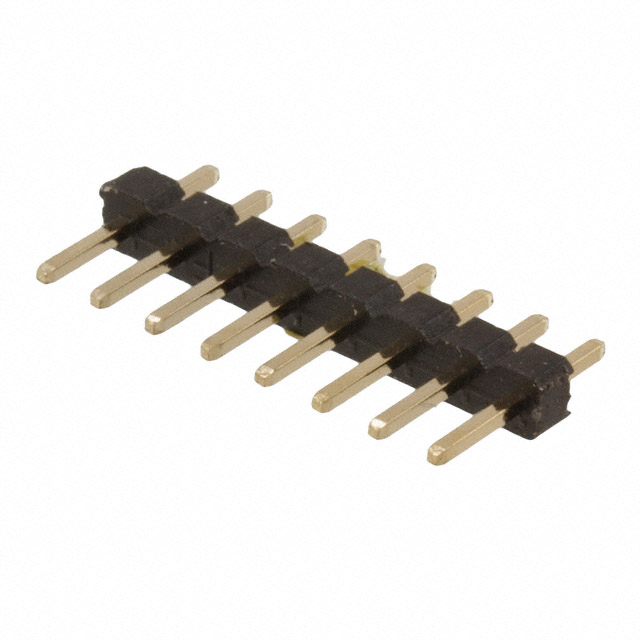

The M22-2510805 is an 8-position vertical pin header from the Harwin M22 series. It features a 2mm pitch and utilizes through-hole termination for board-to-board connections. The connector employs phosphor bronze contacts with gold plating, housed in black nylon (PA6T) insulation rated UL94 V-0. It supports a maximum voltage of 500V and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Vertical orientation design for standard board-to-board mounting
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• UL94 V-0 rated PA6T housing provides flame resistance
• Through-hole termination secures the component to the PCB

Headers, Male Pins Applications

• Board-to-board interconnects
• General electronic equipment assembly
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current availability status. Ensure that the required contact count and pitch match the design specifications. Check for any updated environmental compliance certifications prior to final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a vertical, single-row header with a 2mm pitch is required. Consider the 500V rating and 1A current capacity for circuit requirements. Verify that the through-hole mounting style aligns with the manufacturing process and board thickness constraints.

Headers, Male Pins Part Context

This part belongs to the M22 series, which offers various configurations including right-angle and cable mount options. The M22-2510805 specifically denotes the 8-position vertical variant. Other series members may differ in row count, orientation, or termination method while maintaining the same 2mm pitch standard.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
