M22-2511046

Headers, Male Pins Overview

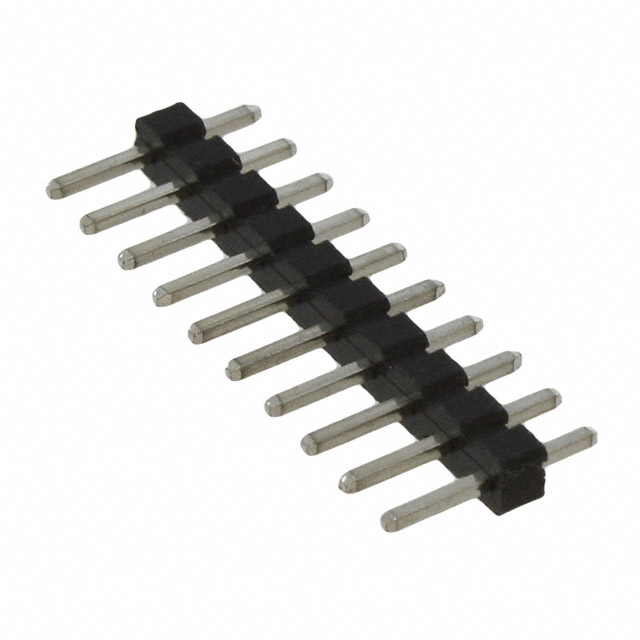

The Harwin M22-2511046 is a vertical through-hole board-to-board header connector from the M22 series. It features 10 male pins with a 2.00 mm pitch and single-row configuration. The connector utilizes phosphor bronze contacts with tin plating, housed in black nylon insulation rated UL94 V-0. Designed for reliable signal transmission, it supports a current rating of 1 A per contact and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting style for direct PCB integration
• Single-row male pin configuration with 2.00 mm spacing
• Tin-plated phosphor bronze contacts for corrosion resistance
• Black nylon housing with UL94 V-0 flammability rating

Headers, Male Pins Applications

• Compact PCB board-to-board interconnections
• Industrial control module signal routing
• Consumer electronics internal circuit linking
• Automotive electronic sub-system connections

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to ensure compatibility with design requirements. Confirm that the tin-plated contact finish meets the intended application's environmental standards. Check for any RoHS compliance updates or regional regulatory restrictions relevant to the procurement destination before finalizing orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile vertical header is required for space-constrained designs. The 2.00 mm pitch offers a balance between density and manufacturability. Ensure the mating connector matches the single-row, male-pin specification. Consider the tin plating for general-purpose applications rather than high-wear environments where gold might be preferred.

Headers, Male Pins Part Context

This connector belongs to the M22 series by Harwin Inc., known for compact and reliable interconnect solutions. The M22-2511046 specifically addresses needs for vertical board-to-board connections. Its design supports automated assembly processes due to the through-hole termination method. The series provides various pin counts and configurations for diverse electronic packaging requirements.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.00 mm pitch, 10-position count, vertical orientation, and through-hole termination. Verify that alternative manufacturers offer compatible tin-plated phosphor bronze contacts and similar thermal ratings. Ensure mechanical dimensions align with existing PCB footprints to avoid rework.
