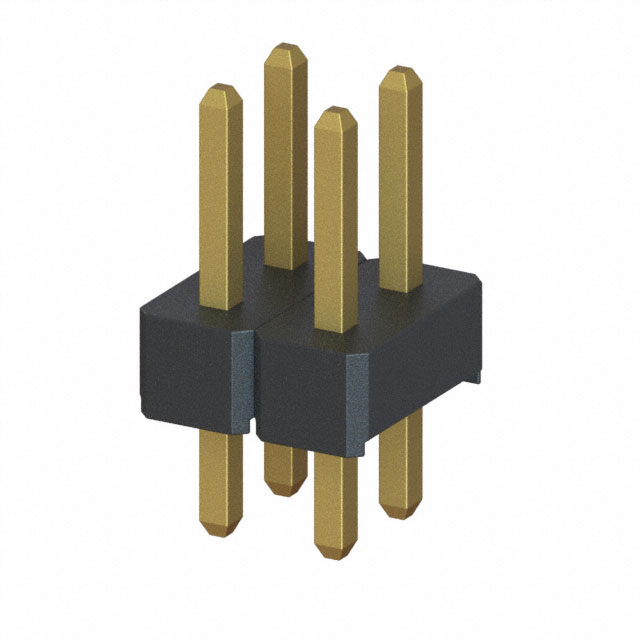

M22-2520205

$0.32

Description：CONN HEADER VERT 4POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:b1591fbebfa5 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2520205 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 4POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2520205

Description：CONN HEADER VERT 4POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：4
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.091" (2.30mm)
Overall Contact Length：0.287" (7.30mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2520205

M22-2520205

Headers, Male Pins Overview

The Harwin M22-2520205 is a 4-position, double-row male pin header from the M22 series. It features a 2mm pitch and vertical orientation for board-to-board connections. The connector utilizes phosphor bronze contacts with gold plating and a nylon housing. Key electrical ratings include 1A current capacity and 650V voltage rating. It supports through-hole installation with solder termination. Operating temperature ranges from -40°C to 105°C. The tail pin length is 3.4mm, mating with 3.5mm pins.

Headers, Male Pins Feature Summary

Double-row configuration providing compact connectivity in a small footprint
Gold-plated phosphor bronze contacts ensure reliable signal transmission
Vertical design facilitates direct board-to-board mounting

Headers, Male Pins Applications

Electronic assemblies requiring high-density interconnects
Test setups needing robust connection points
Prototype development boards

Headers, Male Pins Procurement Notes

Verify the specific part number M22-2520205 against official Harwin documentation to confirm the 4-position count and 650V rating. Ensure compatibility with mating sockets regarding pin height (3.5mm) and PCB thickness. Check for any updated RoHS or REACH compliance status directly from the manufacturer's latest datasheet before procurement.

Headers, Male Pins Selection Notes

Select this component when a 4-pin, double-row vertical header is required. The 2mm pitch suits applications needing moderate density. Verify that the 1A current rating meets circuit requirements. Consider the 650V rating for insulation needs. Ensure the through-hole mounting style aligns with the PCB design constraints.

Headers, Male Pins Part Context

This part belongs to the Harwin M22 series of headers and wire housings. The series offers various position counts and row configurations. The M22-2520205 specifically denotes a 4-position, 2+2 pin variant. It is designed for general electronic interconnection tasks within the broader category of board-to-board connectors.
