M22-2520446

Headers, Male Pins Overview

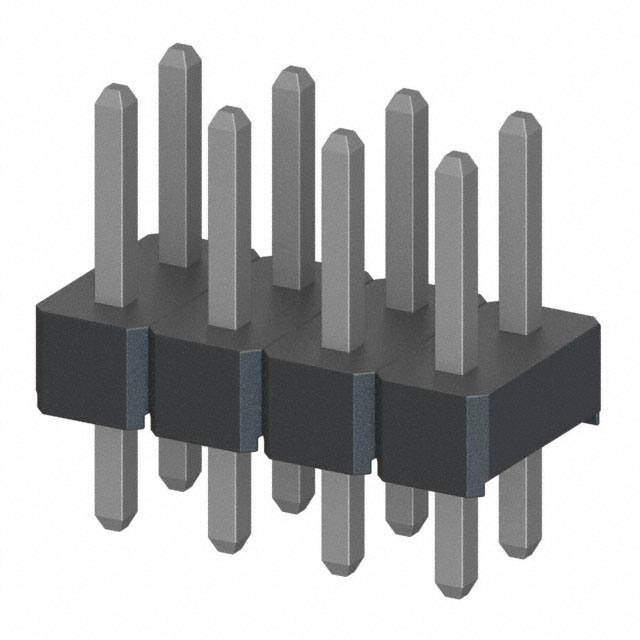

The M22-2520446 is a male pin header connector from the Harwin M22 series, designed for board-to-board interconnection. It features an 8-position configuration with a 2.00 mm (0.079 inch) pitch across two rows. The component utilizes through-hole termination for secure PCB mounting and employs gold-plated phosphor bronze contacts to ensure reliable signal transmission. Constructed with a nylon insulator, this straight header supports standard surface-mount assembly processes while maintaining mechanical stability in compact electronic designs.

Headers, Male Pins Feature Summary

• Two-row male pin header architecture providing high-density connectivity within a compact footprint.
• Gold-plated phosphor bronze contacts engineered for durable electrical performance and corrosion resistance.
• Nylon insulator housing offering structural integrity and thermal stability for robust board-to-board applications.

Headers, Male Pins Applications

• High-density board-to-board interconnections in compact electronic assemblies
• Industrial control systems requiring reliable signal routing
• Consumer electronics utilizing space-constrained printed circuit board layouts

Headers, Male Pins Procurement Notes

Verify the specific contact plating thickness and material composition against the official datasheet before integration. Confirm that the through-hole soldering profile aligns with your manufacturing capabilities. Ensure the nylon insulator rating meets the thermal requirements of your assembly process. Cross-reference the pin count and pitch specifications to guarantee compatibility with mating connectors.

Headers, Male Pins Selection Notes

Select this component when a two-row, 8-position male header with a 2.00 mm pitch is required. The gold-plated contacts are suitable for low-current signal applications where reliability is critical. Consider the straight orientation and through-hole mounting style for standard PCB assembly workflows. Evaluate the physical dimensions to ensure adequate clearance for adjacent components on the target board.

Headers, Male Pins Part Context

This part belongs to the Harwin M22 series, a family of board-to-board connectors known for their versatility and reliability. The series offers various configurations including different pin counts, row arrangements, and termination styles. The M22-2520446 specifically addresses needs for moderate-density connections with precise spacing requirements in professional electronic hardware design.

Headers, Male Pins Replacement Considerations

M22-2520446 is a discontinued product. Verify if M22-2020405 or similar active variants meet the same electrical and mechanical specifications before substitution.
