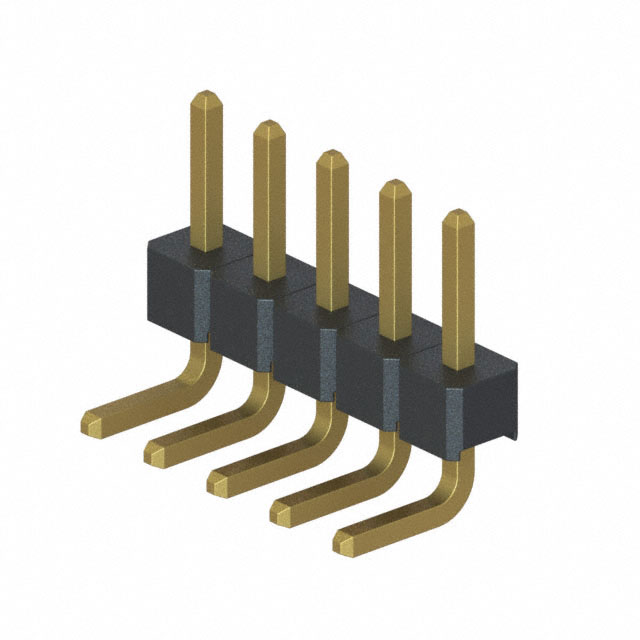

M22-2530505

$0.40

Description：CONN HEADER R/A 5POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:99dcdd1ea8f6 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2530505 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 5POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2530505

Description：CONN HEADER R/A 5POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：5
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.094" (2.40mm)
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2530505

M22-2530505

Headers, Male Pins Overview

The Harwin M22-2530505 is a 5-position, single-row pin header connector from the M22 series. It features a 2 mm pitch and is designed for right-angle board-to-board applications. The component utilizes through-hole termination for secure PCB mounting. Electrical specifications include a rated voltage of 500V and a current rating of 1A. The contacts are made of phosphor bronze with gold plating to ensure reliable conductivity. The operating temperature range spans from -40°C to 105°C.

Headers, Male Pins Feature Summary

Right-angle design facilitates compact vertical interconnections between printed circuit boards.
Gold-plated phosphor bronze contacts provide durable electrical performance and corrosion resistance.
Through-hole termination ensures robust mechanical fixation within the assembly.

Headers, Male Pins Applications

Compact PCB assemblies requiring vertical interconnects
Board-to-board signal transmission in space-constrained electronics
Industrial control modules with limited height restrictions

Headers, Male Pins Procurement Notes

Verify the specific part number M22-2530505 against official Harwin documentation to confirm availability status. Some distributors list this item as obsolete or end-of-life; therefore, cross-reference current stock levels and lifecycle notices directly with authorized suppliers before procurement planning.

Headers, Male Pins Selection Notes

Select this connector when a right-angle, single-row interface is required for board-to-board connections. Ensure the mating counterpart matches the 2 mm pitch and female housing configuration. Confirm that the 1A current rating and 500V insulation voltage meet the system's electrical requirements.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, which offers various configurations including straight and right-angle headers. The series is characterized by its 2 mm pitch and suitability for high-density PCB layouts. The M22-2530505 specifically addresses needs for vertical stacking or angled routing in electronic designs.
