M22-2530746

Headers, Male Pins Overview

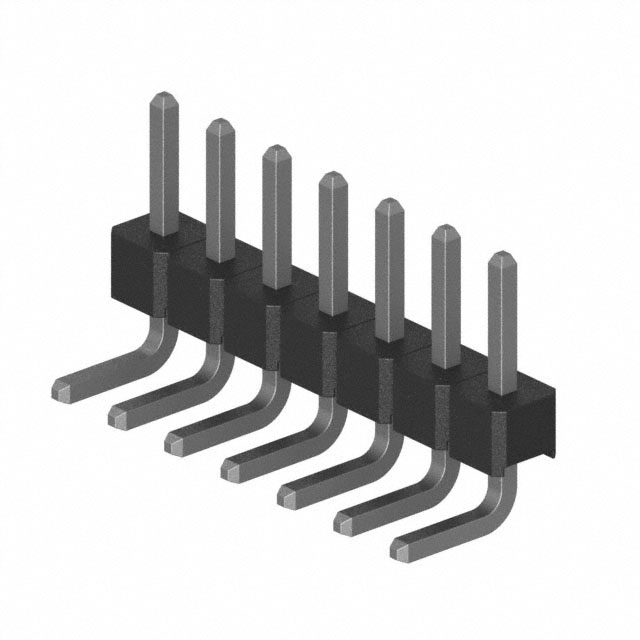

The Harwin M22-2530746 is a 7-position single-row header connector from the M22 series, featuring a 2mm pitch. It utilizes horizontal pin strip termination for through-hole PCB mounting. The contacts are tin-plated phosphor bronze with a mating length of 3.50mm. The housing is constructed from polyamide (PA6T) nylon 6T, rated UL94 V-0 for flame resistance. This component supports board-to-board or cable applications and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Horizontal orientation design facilitates compact board-to-board interconnections
• Tin-plated phosphor bronze contacts ensure reliable electrical conductivity
• Polyamide insulation material provides high thermal stability and flame resistance

Headers, Male Pins Applications

• Board-to-board interconnect systems
• Cable-to-board connections
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific part number M22-2530746 against official Harwin documentation to confirm current availability status. Cross-reference technical specifications such as contact plating and insulation material before integration. Ensure compatibility with mating socket components within the M22 series. Confirm that the horizontal configuration aligns with mechanical constraints in the target assembly design.

Headers, Male Pins Selection Notes

Select this component when a low-profile horizontal header is required for dense PCB layouts. The 2mm pitch offers a balance between signal density and spacing reliability. Tin plating is suitable for general-purpose applications where gold plating is not strictly necessary. Verify that the operating temperature range meets the environmental requirements of the end-use device.

Headers, Male Pins Part Context

This connector belongs to the M22 series, which is designed for industrial standard applications requiring robust performance. The series offers various configurations including vertical and right-angle options. The M22-2530746 specifically addresses needs for horizontal mounting solutions with single-row arrangements.

Headers, Male Pins Replacement Considerations

M22-2530742: 7 Position Single Row Horizontal Header with Gold Plating. M22-2530746 is the tin-plated variant; verify if gold plating is required for corrosion resistance or contact reliability in the specific application environment.
