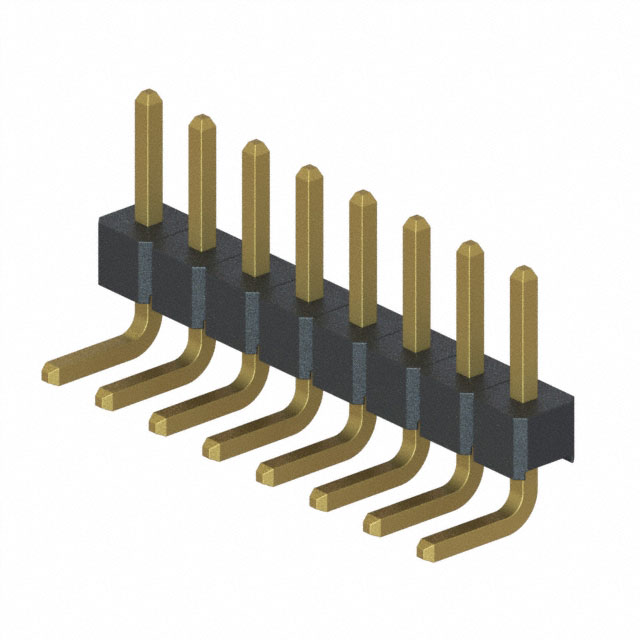

M22-2530805

$0.60

Description：CONN HEADER R/A 8POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:9d806a7ed924 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2530805 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 8POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2530805

Description：CONN HEADER R/A 8POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：8
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.094" (2.40mm)
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2530805

M22-2530805

Headers, Male Pins Overview

The Harwin M22-2530805 is a right-angle pin header connector from the M22 series, designed for through-hole mounting on printed circuit boards. It features an 8-position single-row configuration with a 2mm (0.079 inch) mating pitch. The connector utilizes male pins with tin plating and is rated for 2A current. Key dimensions include a 2.4mm PCB termination height and a 3.5mm mating pin length, ensuring reliable board-to-board or cable connections in compact electronic assemblies.

Headers, Male Pins Feature Summary

Right-angle horizontal orientation facilitates space-efficient board layouts
Single-row male pin design ensures straightforward mating compatibility
Through-hole termination provides robust mechanical stability

Headers, Male Pins Applications

Compact electronic device interconnects
Board-to-board signal transmission
Industrial control module interfaces

Headers, Male Pins Procurement Notes

Verify the specific tin-plated contact finish and right-angle orientation against system requirements. Confirm that the 2.4mm termination height fits within the designated PCB clearance envelope. Ensure mating components are compatible with the 2mm pitch and 3.5mm pin length specifications to guarantee proper engagement and electrical continuity.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for single-row applications. The 2mm pitch suits dense layouts, while the through-hole method offers superior durability compared to surface-mount alternatives. Consider the 2A rating for power distribution needs within the specified thermal operating range.

Headers, Male Pins Part Context

This part belongs to the Harwin M22 series, known for its versatile pin strip connectors. The M22-2530805 specifically addresses the need for angled connections in constrained spaces. Its design supports high-density packaging while maintaining reliable electrical performance across various industrial and commercial environments.
