M22-2531646

Headers, Male Pins Overview

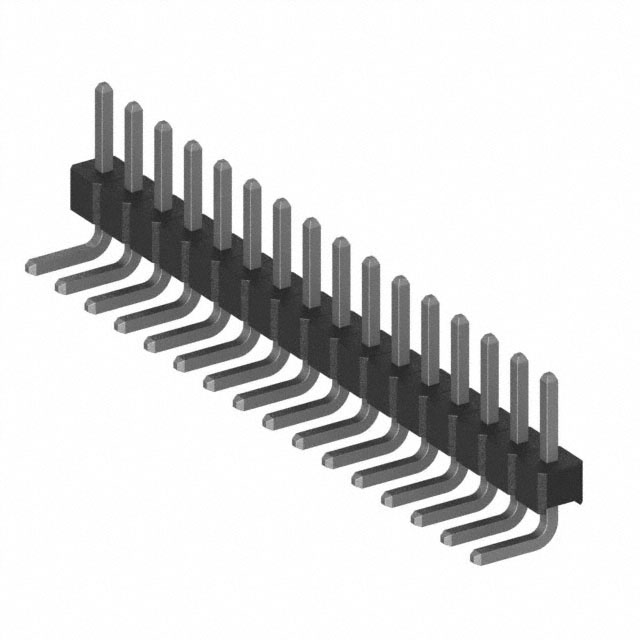

The M22-2531646 is a rectangular connector header from the Harwin M22 series, designed for through-hole mounting. It features a right-angle configuration with 16 positions and a 2.00mm (0.079 inch) pin spacing. The connector utilizes male pins with tin plating on phosphor bronze contacts. Constructed with a black polyamide (PA6T) insulator rated UL94 V-0, it supports a continuous operating temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board-to-board interconnections
• Tin-plated phosphor bronze contacts ensure reliable conductivity
• Polyamide insulation provides thermal stability and flame resistance

Headers, Male Pins Applications

• Board-to-board connections in industrial electronics
• Signal routing in automotive control modules
• Interfacing in consumer electronic devices

Headers, Male Pins Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheets. Confirm that the part number matches the specific right-angle variant. Ensure storage conditions maintain integrity before installation. Cross-reference specifications with system requirements to guarantee compatibility.

Headers, Male Pins Selection Notes

Select this model when a right-angle through-hole header is required. Verify that the 16-position count aligns with circuit needs. Ensure the 2.00mm pitch matches the mating connector. Confirm that the tin plating meets environmental and conductivity standards.

Headers, Male Pins Part Context

This component belongs to the M22 series, known for high-density rectangular connectors. The series offers various configurations including straight and right-angle headers. The M22-2531646 specifically addresses applications requiring space-saving vertical integration.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other M22 series right-angle headers with matching position counts and pitch. Verify contact material and plating specifications to ensure equivalent performance.
