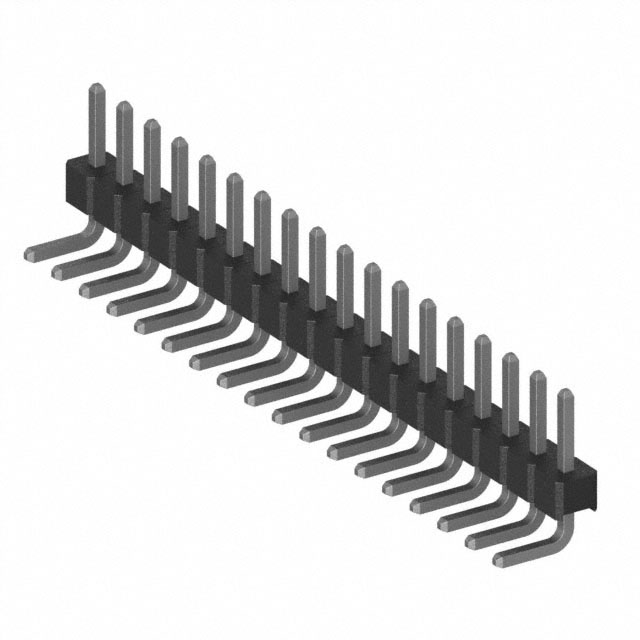

M22-2531846

Description：CONN HEADER R/A 18POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:7b3154d1ca81 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2531846 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 18POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2531846

Description：CONN HEADER R/A 18POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：18
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.094" (2.40mm)
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2531846

M22-2531846

Headers, Male Pins Overview

The M22-2531846 is a vertical pin header connector from the Harwin M22 series, designed for board-to-board or cable applications. It features 18 positions with a 2.00mm (0.079 inch) pitch and utilizes through-hole termination. The connector employs square phosphor bronze contacts with tin plating, housed in black polyamide insulation rated UL94 V-0. It operates within a temperature range of -40°C to 105°C and supports a current rating of 1A per contact.

Headers, Male Pins Feature Summary

Vertical orientation facilitates compact PCB stacking
Breakaway design allows for customizable circuit lengths
Tin-plated phosphor bronze contacts ensure reliable conductivity

Headers, Male Pins Applications

Board-to-board interconnections
Cable-to-board connections
Compact electronic device assembly

Headers, Male Pins Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official Harwin documentation. Confirm that the specific suffix matches the required pin count and termination style. Ensure compliance with RoHS directives if applicable to your manufacturing standards. Validate that the supplier provides traceable origin data for quality assurance purposes.

Headers, Male Pins Selection Notes

Select this component when a vertical, unshrouded header with a 2.00mm pitch is required. The breakaway feature is suitable for designs needing flexible row lengths. Consider the tin plating for general-purpose applications where gold plating is not strictly necessary. Ensure the through-hole mounting method aligns with the target PCB fabrication capabilities.

Headers, Male Pins Part Context

This part belongs to the M22 series, characterized by its 2.00mm pitch and robust mechanical design. The series offers various configurations including right-angle and vertical options. The M22-2531846 specifically addresses needs for 18-position vertical headers, providing a standardized solution for high-density interconnects in consumer and industrial electronics.
