M22-2580346

Headers, Male Pins Overview

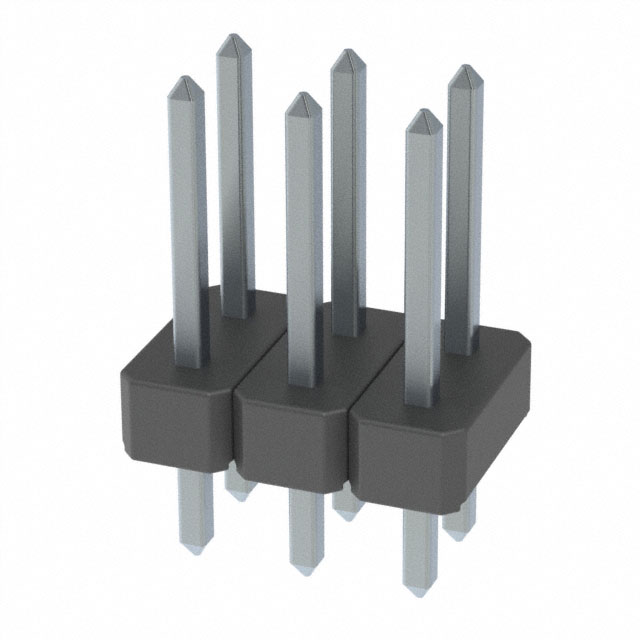

The M22-2580346 is a vertical header connector from the Harwin M22 series, designed for through-hole mounting. It features 6 positions with a 2.00mm (0.079 inch) pitch and utilizes square male pin contacts. The housing is constructed from black polyamide (PA6T) with UL94 V-0 flammability rating. Contact materials consist of phosphor bronze with gold plating on the mating interface. The connector supports board-to-board or cable applications, offering a rated current of 1A per contact within an operating temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Vertical orientation facilitates standard PCB insertion
• Gold-plated square pins ensure reliable signal transmission
• Thermoplastic insulation provides structural stability

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Cable-to-board assembly configurations
• General electronic equipment internal wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix code against official Harwin documentation to confirm exact pin count and termination style. Ensure compatibility with mating socket connectors in the same M22 series family. Confirm that the through-hole footprint matches the target PCB design specifications prior to procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, vertical header is required for 6-position connections. Consider the 2.00mm pitch constraint for trace routing density. Evaluate the 1A current rating against circuit load requirements. Verify that the black PA6T housing meets environmental and thermal standards for the intended application environment.

Headers, Male Pins Part Context

This part belongs to the M22 series of rectangular connectors manufactured by Harwin Inc. The series is characterized by its compact form factor and versatile mounting options. The M22-2580346 specifically represents a 6-position variant within this lineup, sharing common dimensional and electrical characteristics with other members of the series while differing in contact quantity.

Headers, Male Pins Replacement Considerations

Consult Harwin's official substitution guide for direct replacements. Generic equivalents may not match the precise 2.00mm pitch or gold plating thickness. Verify mechanical fit and electrical ratings before substituting with non-Harwin components.
