M22-2580605

Headers, Male Pins Overview

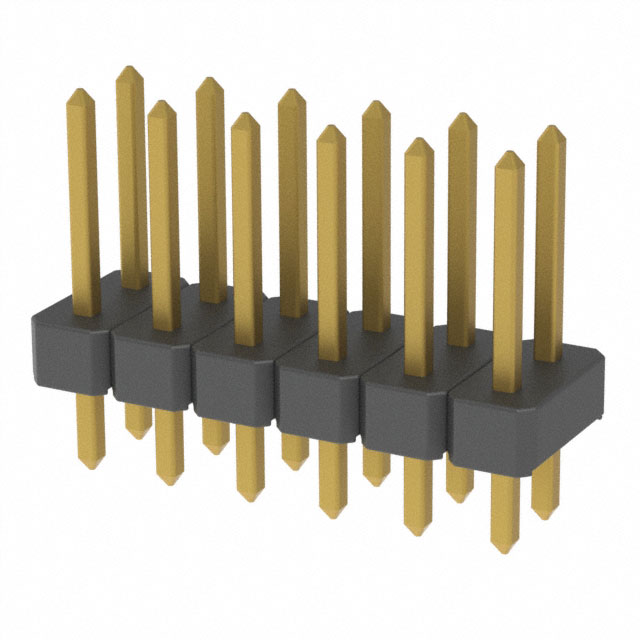

The M22-2580605 is a vertical, double-row pin header connector from the Harwin M22 series. It features 12 positions (6+6) with a 2.00mm pitch and through-hole termination. Constructed with phosphor bronze contacts and gold plating, it utilizes PA6T insulation rated UL94 V-0. The connector supports a 1A current rating per contact and operates within a -40°C to 105°C temperature range.

Headers, Male Pins Feature Summary

• Double-row design for high-density board-to-board connections
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• Vertical orientation facilitates standard PCB mounting

Headers, Male Pins Applications

• Board-to-board interconnects in compact electronic assemblies
• Signal routing in industrial control modules
• Connection points in automotive electronics systems

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 12-position configuration and vertical style. Confirm that the gold plating specification meets the application's corrosion resistance needs. Ensure the through-hole mounting type aligns with the PCB fabrication capabilities. Check compatibility with mating sockets from the same M22 series family.

Headers, Male Pins Selection Notes

Select this component when a low-profile, double-row header is required for 2.00mm pitch applications. Consider the 1A current rating for circuit load requirements. Verify that the vertical form factor fits within the assembly's height constraints. Ensure the operating temperature range covers the environmental conditions of the final product.

Headers, Male Pins Part Context

This connector belongs to the M22 series, known for its slim profile and robust construction. The series offers various configurations including single and double rows with different termination styles. The M22-2580605 specifically provides a vertical, double-row option for space-constrained designs requiring reliable electrical connectivity.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin M22 series headers with matching 2.00mm pitch and 12-position count. Ensure any replacement maintains the double-row layout and vertical orientation. Verify that alternative parts share the same through-hole termination and gold contact plating specifications.
