M22-5300205

Headers, Male Pins Overview

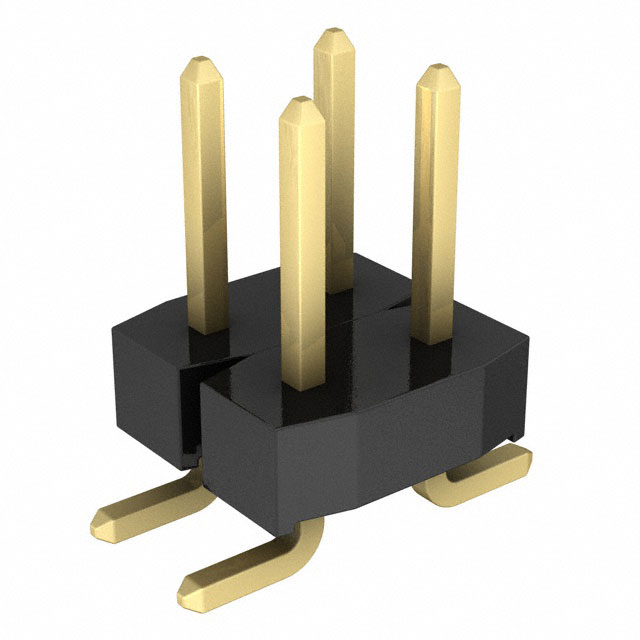

The Harwin M22-5300205 is a surface mount header connector featuring four positions with a 2.00mm pitch. Designed for board-to-board applications, it utilizes square phosphor bronze contacts with gold plating. The unit incorporates a black nylon insulation body rated at UL94 V-0 flammability. It supports a maximum operating temperature of 105°C and provides an insulation height of 1.50mm. This component ensures reliable electrical interconnection in compact electronic assemblies through its robust surface mount termination.

Headers, Male Pins Feature Summary

• Surface mount termination for automated PCB assembly
• Gold-plated phosphor bronze contacts for conductivity
• Black nylon insulation housing with UL94 V-0 rating

Headers, Male Pins Applications

• Compact electronic assemblies requiring board-to-board connections
• Space-constrained circuit board interconnections
• Automated surface mount manufacturing processes

Headers, Male Pins Procurement Notes

Verify the specific manufacturer part number against official Harwin documentation to confirm surface mount configuration and pin count. Ensure compatibility with mating connectors within the M22 series. Check current product status as availability may vary. Confirm that the gold contact finish meets the required environmental specifications for the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a low-profile, four-position surface mount header is required. The 2.00mm pitch accommodates standard board spacing. Consider the 105°C thermal limit and UL94 V-0 rating for safety compliance. Verify that the square contact shape aligns with the mating socket design. Ensure the surface mount footprint matches the target PCB layout constraints.

Headers, Male Pins Part Context

This connector belongs to the Harwin M22 series, which offers various configurations including vertical and right-angle headers. The series is characterized by its 2.00mm pitch and modular design options. The M22-5300205 specifically addresses needs for surface mount technology, providing a compact solution compared to through-hole alternatives within the same family.

Headers, Male Pins Replacement Considerations

Compatible mating sockets include M22-6361042, M22-6341042, and M22-7141042. These components share the 2.00mm pitch and M22 series interface. Verify that the replacement or mating part supports the required surface mount or through-hole installation method as needed for the specific assembly.
