M22-5330305

Headers, Male Pins Overview

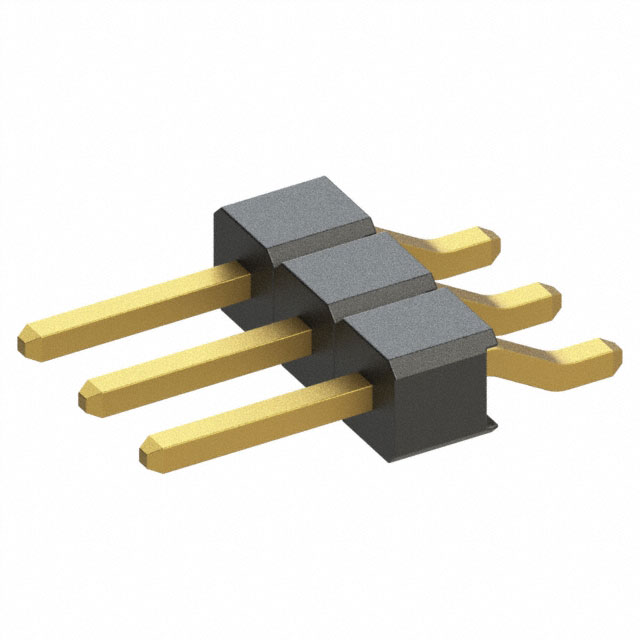

The M22-5330305 is a surface mount pin header from the Harwin M22 series, designed for board-to-board or wire-to-board connections. It features a single row of three contacts with a 2.00mm pitch and a horizontal orientation. The connector utilizes gold-plated phosphor bronze contacts housed in black polyamide insulation rated UL94 V-0. It supports a maximum voltage of 500V and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Surface mount technology enables automated assembly on printed circuit boards.
• Gold-plated contacts ensure reliable conductivity and corrosion resistance.
• Polyamide insulation provides high thermal stability and flame retardancy.

Headers, Male Pins Applications

• Compact electronic device interconnects
• Industrial control system modules
• Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix J0505 if required by design specifications, as standard listings may vary. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure surface mount footprint compatibility with existing PCB layout tools. Check for obsolescence notices as component availability changes over time.

Headers, Male Pins Selection Notes

Select this component when space constraints require a low-profile horizontal surface mount configuration. The 2.00mm pitch suits applications needing moderate density without excessive board real estate. Verify that the 1A current rating aligns with signal or low-power data transmission requirements rather than high-current power distribution needs.

Headers, Male Pins Part Context

This part belongs to the M22 series, a widely used line of connectors known for their reliability in harsh environments. The series offers various configurations including right-angle and vertical options. The M22-5330305 specifically addresses the need for compact, horizontally mounted headers in densely packed assemblies.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific variant. Consider checking the broader M22 series catalog for similar pitch and contact count options if exact matches are unavailable.
