M22-5330405

Headers, Male Pins Overview

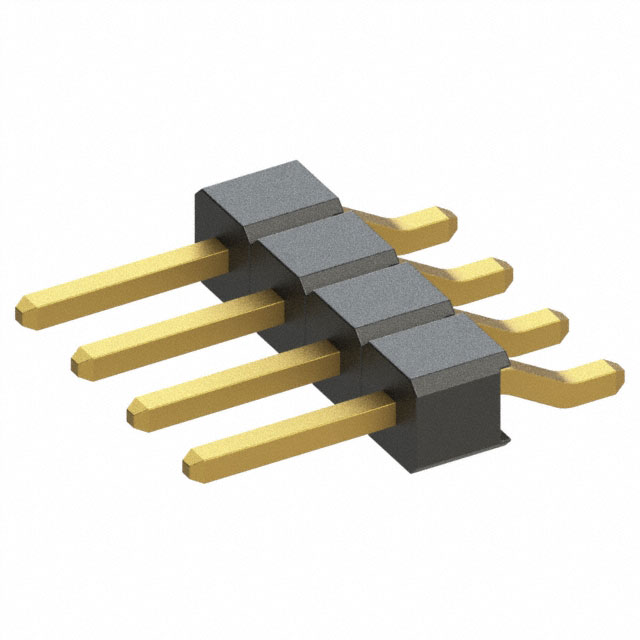

The M22-5330405 is a surface mount header connector from the Harwin M22 series, designed for board-to-board applications. It features a single row with four positions and a 2.00mm (0.079 inch) pitch. The connector utilizes gold-plated phosphor bronze contacts housed in a black nylon insulation body rated UL94 V-0. It operates within a temperature range of -40°C to +105°C and supports a current rating of 1A per contact.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact PCB integration
• Gold-plated phosphor bronze contacts ensure reliable electrical performance
• Nylon insulation body provides high thermal stability and UL94 V-0 flammability rating

Headers, Male Pins Applications

• Board-to-board interconnections in dense electronic assemblies
• Compact consumer electronics requiring low-profile connections
• Industrial control modules with space constraints

Headers, Male Pins Procurement Notes

Verify the specific suffix code against the manufacturer datasheet to confirm orientation and plating specifications. Ensure compatibility with automated surface mount assembly processes. Cross-reference the part number with official Harwin documentation to validate material composition and environmental ratings before procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring right-angle surface mounting with a 2mm pitch. It is suitable where limited vertical space is available. Consider the 1A current rating and -40°C to +105°C operating range for environmental suitability. Verify that the single-row configuration meets the circuit density requirements.

Headers, Male Pins Part Context

This part belongs to the Harwin M22 series, which offers various configurations including through-hole and surface mount options. The series is characterized by its 2mm pitch and robust construction. The M22-5330405 specifically addresses needs for right-angle surface mounting in single-row layouts, providing a compact solution for modern PCB designs.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2mm pitch, 4-position count, single-row layout, and surface mount right-angle form factor. Verify identical contact material and plating specifications. Check for compatible housing materials and flammability ratings to ensure functional equivalence in the target application.
