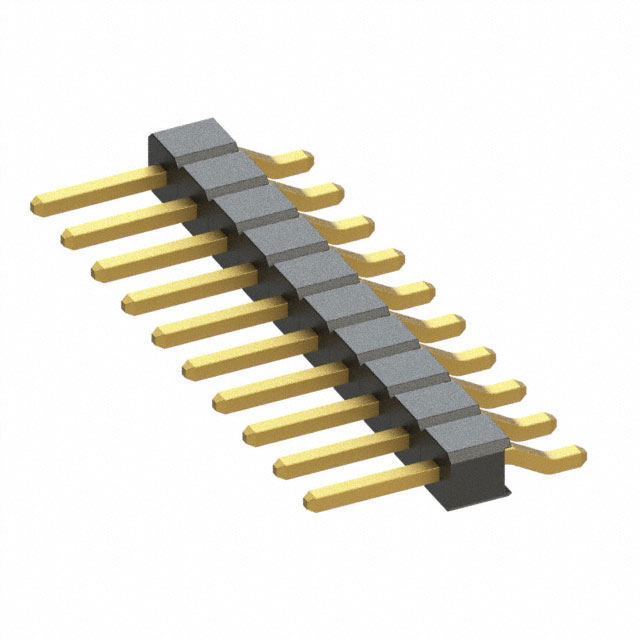

M22-5331005

Description：CONN HEADER SMD R/A 10POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:80d4fbd0c372 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-5331005 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD R/A 10POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-5331005

Description：CONN HEADER SMD R/A 10POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：10
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.165" (4.20mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-5331005

M22-5331005

Headers, Male Pins Overview

The M22-5331005 is a 10-position, single-row pin header from the Harwin M22 series. It features a 2mm pitch and is designed for horizontal surface mount installation. The connector utilizes gold-plated phosphor bronze contacts housed in a black polyamide (PA6T) insulator rated UL94 V-0. It supports a current rating of 1A per contact and operates within a temperature range of -40°C to 105°C. The assembly includes a board guide feature and has a mating pin length of 3.5mm.

Headers, Male Pins Feature Summary

Horizontal surface mount configuration for compact PCB integration
Gold-plated phosphor bronze contacts ensure reliable electrical performance
Polyamide insulation provides high thermal stability and flame resistance

Headers, Male Pins Applications

Embedded PC motherboard interconnections
High-density board-to-board connections
Industrial control system circuit boards

Headers, Male Pins Procurement Notes

Verify the specific orientation suffix and packaging format against the official datasheet before ordering. Confirm that the surface mount footprint matches the target PCB design. Ensure compatibility with standard reflow soldering profiles required for PA6T materials.

Headers, Male Pins Selection Notes

Select this component when a low-profile, horizontal surface mount header is required. The 2mm pitch offers a balance between density and manufacturability. Consider the 1A current rating for signal or low-power applications. Verify mechanical clearance requirements for the horizontal profile during layout.

Headers, Male Pins Part Context

This part belongs to the M22 series, a family of 2mm pitch connectors established as standards in embedded computing. The series offers various configurations including through-hole and SMT options. This specific model represents the horizontal SMT variant optimized for space-constrained designs.
