M22-5331405

Headers, Male Pins Overview

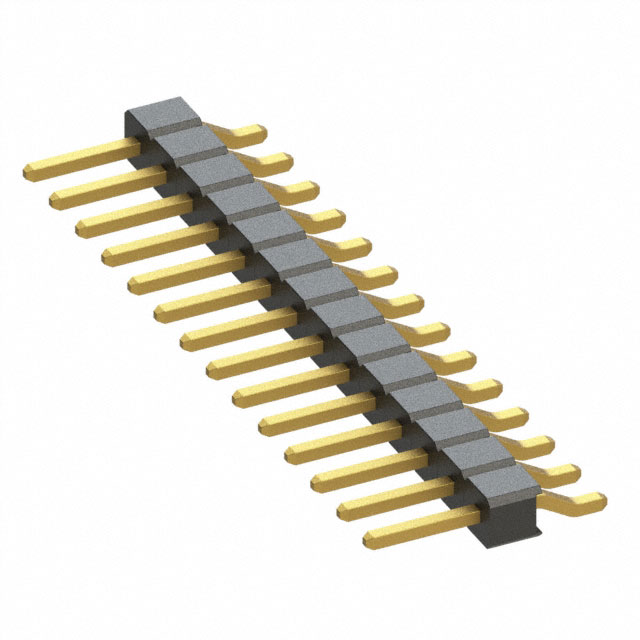

The M22-5331405 is a male pin header from the Harwin M22 series, designed for board-to-board connections. It features a single row with 14 positions and a 2 mm (0.079 in) pitch. The connector utilizes phosphor bronze contacts with gold plating and nylon insulation rated UL 94 V-0. It supports through-hole solder termination with a right-angle orientation. Electrical ratings include a current capacity of 1 A per contact and a dielectric withstand voltage of 500 VAC. The operating temperature range spans from -40°C to +105°C.

Headers, Male Pins Feature Summary

• Right-angle configuration facilitates compact vertical stacking in dense PCB layouts.
• Gold-plated phosphor bronze contacts ensure reliable electrical performance and corrosion resistance.
• Nylon housing provides high thermal stability and meets UL 94 V-0 flammability standards.

Headers, Male Pins Applications

• Board-to-board interconnections in industrial control systems
• High-density electronic assemblies requiring vertical space optimization
• Consumer electronics with strict height limitations

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact pin count, orientation, and termination type. Ensure compatibility with mating connectors regarding pitch and contact geometry. Confirm that the nylon material rating meets the thermal requirements of the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a right-angle male header is required for board-to-board applications. The 2 mm pitch offers a balance between signal density and mechanical robustness. Verify that the 1 A current rating and 500 VAC voltage withstand capability align with the circuit design specifications.

Headers, Male Pins Part Context

This part belongs to the M22 series, which provides fine-pitch rectangular connectors for demanding applications. The series includes various configurations such as single and double rows, different orientations, and SMT or through-hole terminations. The M22-5331405 specifically addresses needs for compact, right-angle male headers.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the M22 family include M22-2031405 (single row, straight) and M22-2041405 (double row). Ensure any replacement matches the 2 mm pitch and 14-position requirement while verifying orientation compatibility.

Headers, Male Pins FAQ

What is the contact material for the M22-5331405?

The contacts are made of phosphor bronze with gold plating to ensure durability and low contact resistance.

Does this connector support surface mount technology?

No, the M22-5331405 is designed for through-hole solder termination, not surface mount installation.
