M22-5430405

Headers, Male Pins Overview

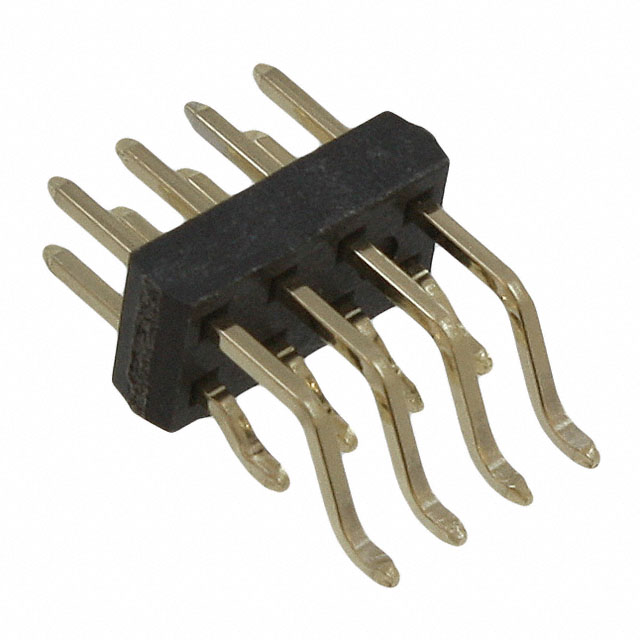

The M22-5430405 is a surface-mount right-angle pin header from the Harwin M22 series. It features an 8-position, double-row configuration with a 2.00mm pitch. The connector utilizes square male pins made of brass with gold plating for reliable mating contact. Designed for board-to-board applications, it includes location pegs to assist in precise alignment during assembly. The housing is constructed from black polyamide (PA6T) nylon, rated UL94 V-0 for flammability. It supports a current rating of 1.5A per contact and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Surface-mount right-angle design with integrated location pegs for accurate PCB alignment
• Gold-plated square male contacts housed in high-temperature resistant PA6T nylon
• Push-pull locking mechanism ensures secure connection stability

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies
• High-density circuit board stacking requiring precise alignment
• Industrial control systems operating in extreme temperature environments

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 8-position, double-row specification. Confirm that the surface-mount right-angle orientation aligns with the PCB layout constraints. Ensure compatibility with the mating socket counterpart within the M22 series. Check that the component meets the necessary UL94 V-0 flammability ratings for the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle surface-mount solution is required for dense board-to-board connections. The 2.00mm pitch allows for higher density compared to standard 2.54mm headers. The push-pull latch system provides mechanical security without screws. Consider the thermal limits of the PA6T insulation if the application involves sustained high temperatures.

Headers, Male Pins Part Context

This connector belongs to the M22 series, which is designed for high-reliability applications. The series offers various configurations including through-hole and surface-mount options. The M22-5430405 specifically addresses the need for right-angle connectivity in space-constrained designs while maintaining robust electrical performance.

Headers, Male Pins Replacement Considerations

Compatible mating sockets include M22-6550442R and M22-6360442. These counterparts share the same 2.00mm pitch and double-row format. Verify that the replacement or mating parts support the required surface-mount termination style.
