M22-6341042

Headers, Receptacles, Female Sockets Overview

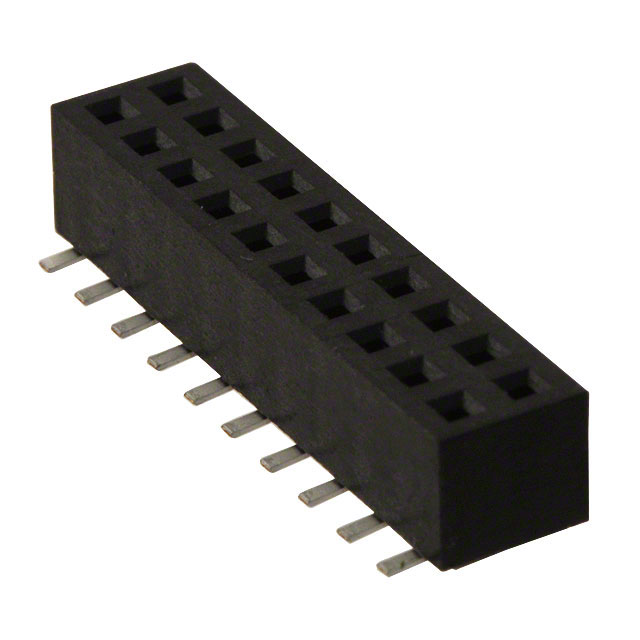

The M22-6341042 is a 20-position PCB receptacle from the Harwin M22 series, designed for surface mount board-to-board applications. It features a 2 mm (0.079 in) contact pitch and a dual-row configuration with female contacts. The connector utilizes gold-plated phosphor bronze contacts housed in black polyamide insulation rated UL94 V-0. It supports a current rating of 1A to 2A per contact and withstands voltages up to 500VAC across an operating temperature range of -40°C to +105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount design for automated PCB assembly
• Gold-plated contacts for reliable signal transmission
• High-temperature resistant polyamide insulation

Headers, Receptacles, Female Sockets Applications

• Industrial control systems
• Telecommunications equipment
• General purpose electronic interconnects

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix against the manufacturer datasheet to confirm plating thickness and material composition. Ensure surface mount footprint compatibility with your PCB design. Confirm RoHS compliance status through official documentation before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for high-density board-to-board connections requiring surface mount technology. Consider the 2 mm pitch and dual-row layout for space-constrained designs. Verify thermal stability requirements align with the specified operating temperature range.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the M22 series, a family of connectors known for their compact size and robust mechanical performance. The series offers various configurations including headers and receptacles for both through-hole and surface mount applications, catering to diverse industrial and commercial needs.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible mating parts include Harwin M22-6361042 and M22-6341042 variants. Verify pin count and pitch match exactly. Cross-reference with M22-7141042 for alternative mounting styles.
