M24128-DFCS6TP/K

Memory IC Overview

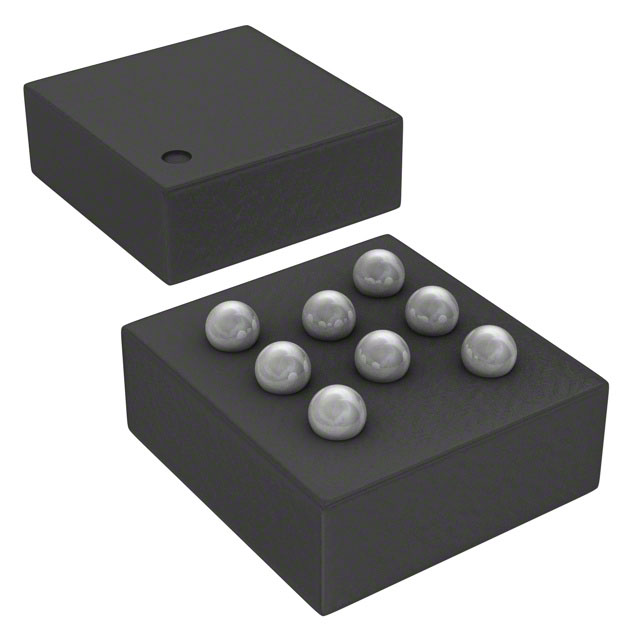

The M24128-DFCS6TP/K is a 128-Kbit serial I2C EEPROM organized as 16 K x 8 bits. It operates within a supply voltage range of 1.7 V to 5.5 V and supports clock frequencies up to 1 MHz. The device features an access time of 450 ns and is housed in an 8-WLCSP package. It ensures data retention for over 200 years and withstands more than 4 million write cycles. The component functions across an ambient temperature range from -40 °C to +85 °C.

Memory IC Feature Summary

• Supports I2C bus modes including Standard, Fast, and Fast-mode Plus with hardware write protection capabilities.
• Provides robust data integrity through enhanced ESD and latch-up protection mechanisms.
• Utilizes advanced true EEPROM technology for byte-alterable memory operations.

Memory IC Applications

• Smart grid distribution systems
• Smart metering applications
• Personal electronics devices

Memory IC Procurement Notes

Verify the specific suffix DFCS6TP/K against official STMicroelectronics documentation to confirm the WLCSP-8 package type and operating voltage specifications. Ensure compatibility with I2C interface requirements and check RoHS compliance status before integration into designs requiring surface-mount assembly.

Memory IC Selection Notes

Select this component when a compact WLCSP footprint is required for 128-Kbit non-volatile storage. It is suitable for designs needing wide voltage operation down to 1.7 V and high-speed 1 MHz I2C communication. Consider its extended endurance and data retention characteristics for long-life embedded applications.

Memory IC Part Context

This part belongs to the M24128 series of serial EEPROMs manufactured by STMicroelectronics. The series offers various package options including SO8N, TSSOP8, and WLCSP8. The M24128-DF variant specifically supports the lower voltage range starting at 1.7 V, distinguishing it from other sub-series within the same memory capacity family.

Memory IC Replacement Considerations

Direct substitutes include other M24128 variants with compatible packages such as M24128-BRDW6TP or M24128-BXDW6TP, provided the pinout and electrical characteristics align with the design requirements.
