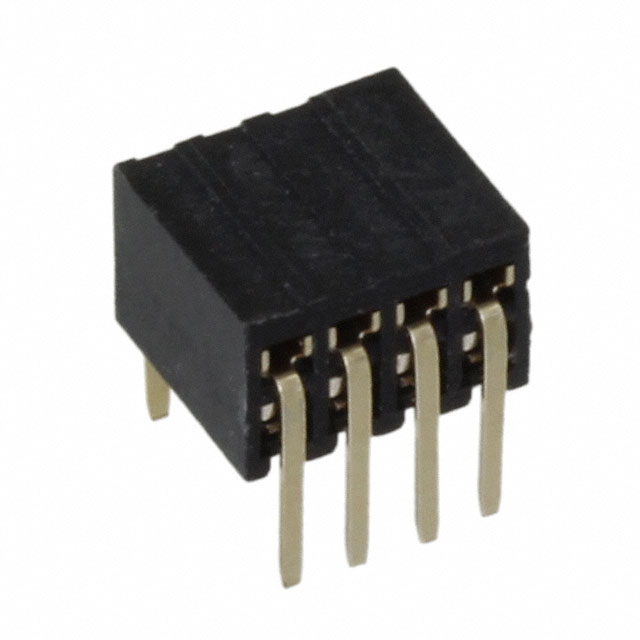

M50-3200445

$1.77

Description：CONN RCPT 8POS 0.05 GOLD PCB R/A
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:357dfbae63f0 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3200445 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 8POS 0.05 GOLD PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M50-3200445

Description：CONN RCPT 8POS 0.05 GOLD PCB R/A
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：8
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Insulation Color：Black
Insulation Height：0.136" (3.46mm)
Contact Length - Post：0.094" (2.40mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M50-3200445

M50-3200445

Headers, Receptacles, Female Sockets Overview

The M50-3200445 is an 8-position socket connector from the Harwin Archer M50 series. It features a 1.27mm (0.05 inch) mating pitch and utilizes two rows of contacts. Designed for through-hole mounting at a right angle, it employs phosphor bronze terminals with gold plating. The housing is constructed from black polyamide (PA9T) material rated UL94 V-0. The component supports a working temperature range of -40°C to +105°C and carries a current rating of 1A.

Headers, Receptacles, Female Sockets Feature Summary

Right-angle through-hole mounting configuration for board-to-board applications
Gold-plated phosphor bronze contacts ensuring reliable signal transmission
High-temperature resistant PA9T insulation material

Headers, Receptacles, Female Sockets Applications

General electronic interconnects
Medical equipment signal routing
Telecommunications hardware connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix '45' confirms the right-angle through-hole termination style. Confirm that the 8-position count matches the design requirement. Ensure compatibility with the mating pin header specifications. Check for RoHS compliance status if required by the assembly process. Validate the operating temperature range against environmental constraints.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a compact, right-angle connection is necessary. The 1.27mm pitch suits high-density layouts. The through-hole method provides robust mechanical stability. Consider the 1A current rating for power distribution needs. Verify space availability for the right-angle profile on the PCB.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Archer M50 series, characterized by a 1.27mm pitch. The series offers various configurations including surface mount and different row counts. The M50-3200445 specifically addresses the need for angled, low-profile connections in constrained spaces.
