M50-3200545

Headers, Receptacles, Female Sockets Overview

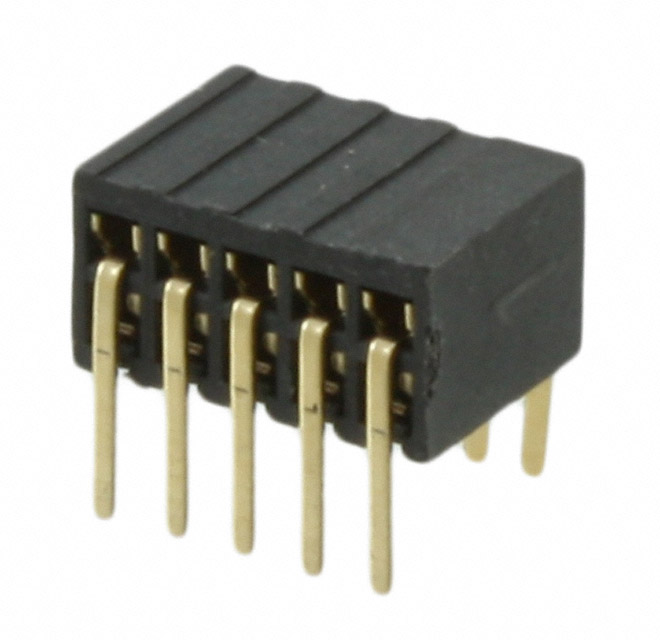

The Harwin M50-3200545 is a 10-position, double-row socket assembly from the Archer M50 series. It features a 1.27 mm (0.05 in) pitch and utilizes gold-plated phosphor bronze contacts for reliable conductivity. Designed for through-hole mounting, this connector offers a right-angle orientation to facilitate compact board layouts. The housing is constructed from thermoplastic material, providing structural integrity and insulation. It is rated for a maximum current of 1 A and a voltage of 500 V, with an operating temperature range spanning from -40°C to +105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle configuration enables space-efficient vertical interconnections on printed circuit boards.
• Gold-plated phosphor bronze contacts ensure low contact resistance and corrosion resistance.
• Thermoplastic housing provides durable insulation and mechanical stability for high-reliability applications.

Headers, Receptacles, Female Sockets Applications

• Board-to-board connections requiring right-angle routing
• High-density electronic assemblies with limited vertical clearance
• Industrial control systems utilizing through-hole mounting

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific mating height requirements against the target PCB stack-up, as the M50 series offers various socket lengths. Confirm that the right-angle orientation aligns with the design layout constraints. Ensure the selected component matches the 1.27 mm pitch specification for compatibility with corresponding pin headers. Cross-reference the manufacturer datasheet for precise dimensional tolerances before finalizing procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a right-angle connection is necessary to save board space or route signals vertically. The 1.27 mm pitch suits applications needing moderate density without excessive miniaturization. Consider the 1 A current rating for signal or low-power data lines rather than high-current power distribution. The through-hole technology ensures robust mechanical fixation compared to surface-mount alternatives.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Harwin Archer M50 series, which specializes in high-reliability connectors for demanding environments. The series is characterized by its modular design, allowing for various row counts and mating heights. The M50-3200545 specifically addresses the need for angled interconnects within this ecosystem, maintaining the series' standards for durability and electrical performance.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 1.27 mm pitch, 10-position count, double-row configuration, and right-angle through-hole termination. Verify that alternative components maintain similar voltage and current ratings. Check for compatible housing materials and contact plating specifications to ensure equivalent environmental resilience.

Headers, Receptacles, Female Sockets FAQ

What is the contact material used in the M50-3200545?

The contacts are made from phosphor bronze and are finished with a gold plating to enhance conductivity and prevent oxidation.

Is this connector suitable for high-temperature environments?

Yes, it operates reliably within a temperature range of -40°C to +105°C, making it suitable for various industrial conditions.
