M50-3200845

Headers, Receptacles, Female Sockets Overview

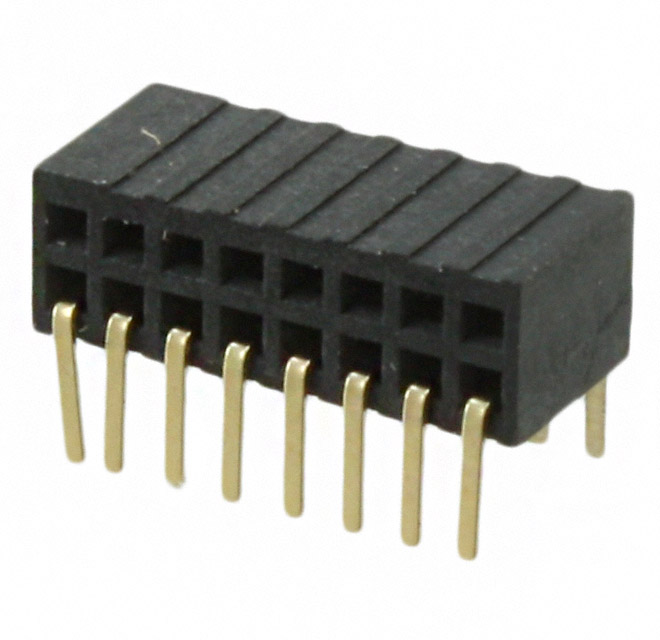

The Harwin M50-3200845 is a 16-position board-to-board receptacle connector from the Archer M50 series. It features a 1.27mm pitch with two rows of contacts, designed for through-hole right-angle mounting. The connector utilizes gold-plated female sockets and offers a mating height of 8.5mm. Key electrical specifications include a contact resistance of 20 mΩ and a dielectric withstand voltage of 500VAC. The unit is lead-free, RoHS compliant, and rated for 300 mating cycles.

Headers, Receptacles, Female Sockets Feature Summary

• Twin-beam contact system ensures reliable signal transmission
• Right-angle through-hole mounting facilitates PCB layout flexibility
• Gold plating provides corrosion resistance and stable conductivity

Headers, Receptacles, Female Sockets Applications

• High-density electronic assemblies requiring precise alignment
• Industrial control systems utilizing board-to-board interconnects
• Communication equipment modules needing robust mechanical stability

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific part number matches the required 8.5mm mating height and right-angle orientation. Confirm that the procurement source provides original manufacturer documentation to ensure compliance with RoHS and lead-free standards. Cross-reference the 16-position configuration against design schematics to prevent mismatching with alternative row counts or pitch variations within the Archer M50 family.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a rigid board-to-board connection is required at a 1.27mm pitch. The right-angle through-hole design is suitable for applications where space constraints necessitate perpendicular mounting. Ensure the mating header supports the twin-beam contact interface and that the operating environment does not exceed the specified dielectric withstand voltage limits.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to the Harwin Archer M50 series, which offers various mating heights ranging from 2.2mm to 8.5mm in single and double inline styles. The series is engineered for high-reliability applications, providing consistent performance across diverse industrial and commercial sectors through standardized pin spacing and durable contact materials.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes must match the 1.27mm pitch, 16-contact count, and 8.5mm height. Verify that alternative parts support through-hole right-angle mounting and feature compatible twin-beam contact technology to maintain mechanical and electrical integrity.
