M50-3201345

Description：CONN RCPT 26P 0.05 GOLD PCB R/A
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:acebf8155ace Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3201345 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 26P 0.05 GOLD PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M50-3201345

Description：CONN RCPT 26P 0.05 GOLD PCB R/A
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：26
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Insulation Color：Black
Insulation Height：0.136" (3.46mm)
Contact Length - Post：0.094" (2.40mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M50-3201345

M50-3201345

Headers, Receptacles, Female Sockets Overview

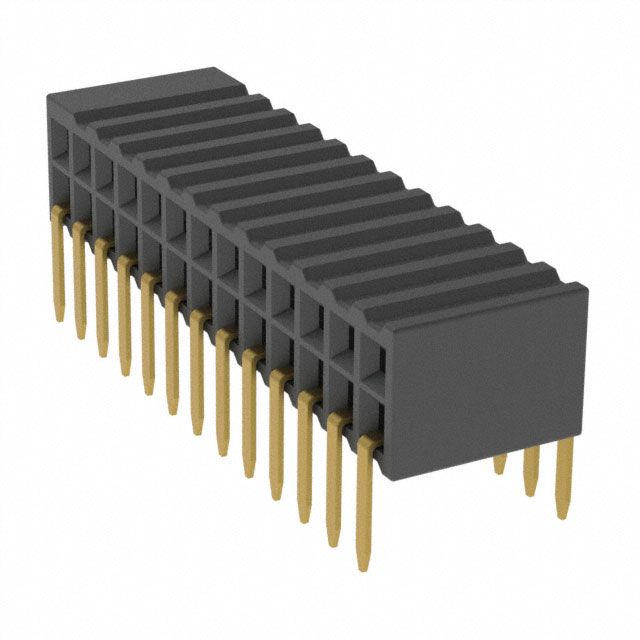

The Harwin M50-3201345 is a 26-position female socket receptacle connector from the Archer M50 series. It features a 1.27mm (0.050 inch) pitch with two rows of contacts. Designed for board-to-board or cable applications, it utilizes through-hole termination and a right-angle mounting style. The connector includes gold-plated phosphor bronze contacts and a black polyamide insulation body rated UL94 V-0. It supports a maximum current of 1A and operates within a temperature range of -40°C to 105°C.

Headers, Receptacles, Female Sockets Feature Summary

Push-pull latching mechanism for secure mating
Right-angle through-hole PCB mounting
Gold-plated square contact terminals
UL94 V-0 rated polyamide insulation

Headers, Receptacles, Female Sockets Applications

Board-to-board interconnects
Cable-to-board connections
General industrial electronics
Medical equipment interfaces
Telecommunications hardware

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix '45' against official Harwin documentation to confirm right-angle orientation and through-hole termination requirements. Ensure compatibility with existing PCB footprints and mating header specifications before procurement. Confirm end-of-life status if sourcing from secondary markets.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, right-angle female connector is required for dense board layouts. The 1.27mm pitch allows for high pin counts in limited space. Consider the push-pull latching feature for applications requiring frequent connection cycles or vibration resistance compared to standard friction-lock connectors.

Headers, Receptacles, Female Sockets Part Context

Part of the Archer M50 series, designed for compact electronic assemblies. The series offers various configurations including surface mount and IDC options. This specific model represents a legacy through-hole solution within the broader portfolio of high-reliability interconnect systems.
