M50-3201745

Headers, Receptacles, Female Sockets Overview

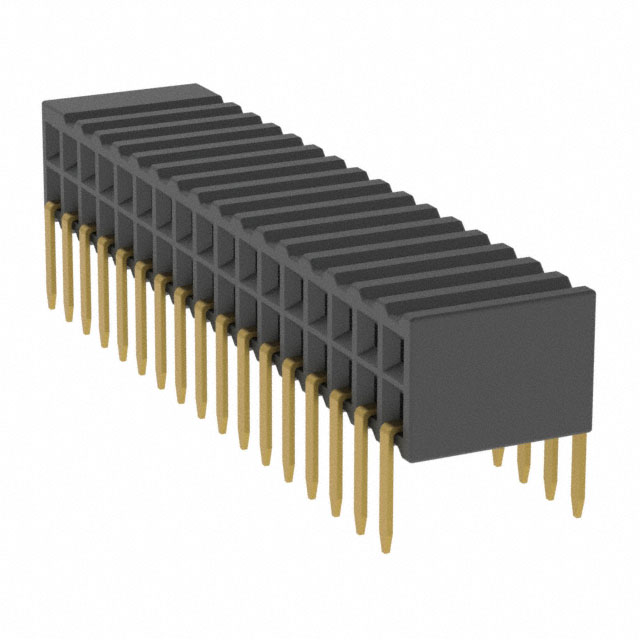

The Harwin M50-3201745 is a 34-position (17+17) dual in-line horizontal socket connector from the Archer M50 series. It features a 1.27 mm pitch and gold-plated phosphor bronze contacts housed in black thermoplastic. Designed for through-hole mounting, it supports wire-to-board applications with a current rating of 1 A and voltage rating of 250 V. The unit operates within a temperature range of -40°C to +105°C and meets UL 94 V-0 flammability standards.

Headers, Receptacles, Female Sockets Feature Summary

• Horizontal orientation facilitates compact board layout integration
• Gold plating ensures reliable signal transmission and corrosion resistance
• Thermoplastic housing provides structural stability and thermal endurance

Headers, Receptacles, Female Sockets Applications

• Wire-to-board interconnections
• Ribbon cable termination systems
• General electronic circuit assembly

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official Harwin documentation to confirm pin count, contact material, and housing color. Ensure the selected variant matches the required horizontal orientation and through-hole termination style for your PCB design constraints.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile horizontal interface is required for dense circuit layouts. The 1.27 mm pitch allows for high-density connections while maintaining standard ribbon cable compatibility. Verify that the 1 A current rating aligns with the electrical load requirements of the target application.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Archer M50 family, which specializes in fine-pitch IDC solutions. The series utilizes 0.635 mm pitch ribbon cables for rapid connection without specialized tools. This specific model represents the horizontal socket configuration within the broader M50 product line.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official Harwin cross-reference guides for direct substitutes. Verify that any alternative maintains the identical 1.27 mm pitch, 34-position count, and horizontal mounting orientation to ensure mechanical fit.
