M50-3203345

Description：CONN RCPT 66P 0.05 GOLD PCB R/A
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:4eb9aa0a2bd4 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3203345 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 66P 0.05 GOLD PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M50-3203345

Description：CONN RCPT 66P 0.05 GOLD PCB R/A
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：66
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Insulation Color：Black
Insulation Height：0.136" (3.46mm)
Contact Length - Post：0.094" (2.40mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M50-3203345

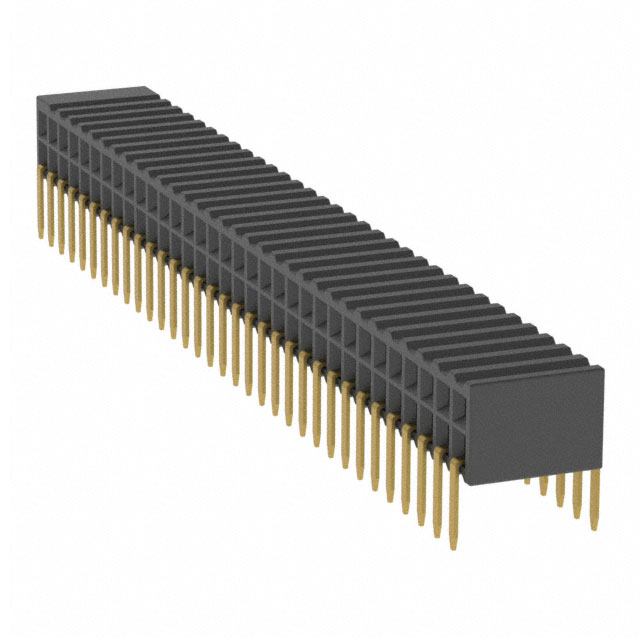

M50-3203345

Headers, Receptacles, Female Sockets Overview

The M50-3203345 is a Harwin Archer series socket connector featuring 66 positions in a dual inline configuration. It utilizes a 1.27mm (0.05 inch) pitch with two rows of female contacts. Designed for through-hole right-angle mounting, the assembly employs gold-plated phosphor bronze contacts and a black polyamide insulation body rated UL94 V-0. The component supports a maximum current of 1A and operates within a temperature range of -40°C to 105°C.

Headers, Receptacles, Female Sockets Feature Summary

Right-angle through-hole mounting for compact board integration
Gold-plated phosphor bronze contacts for reliable conductivity
UL94 V-0 flammability rating for safety compliance

Headers, Receptacles, Female Sockets Applications

General electronic interconnects
Medical equipment signal routing
Telecommunications hardware

Headers, Receptacles, Female Sockets Procurement Notes

Verify part availability as the M50-3203345 may be subject to end-of-life status or discontinuation. Confirm current stock levels with authorized distributors before finalizing procurement plans. Ensure compatibility with mating header specifications and verify that the right-angle form factor meets the mechanical constraints of the target assembly design.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a dual-row female socket with right-angle termination is required for PCB layouts. The 1.27mm pitch suits high-density applications. Consider the 1A current rating and 105°C thermal limit against system requirements. Verify that the through-hole soldering process aligns with manufacturing capabilities and that the housing material meets environmental standards.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Harwin Archer M50 series, which provides standardized rectangular interconnect solutions. The series offers various pin counts and mounting orientations. The M50-3203345 specifically addresses needs for medium-density connections requiring robust mechanical stability and consistent electrical performance in industrial environments.
