M50-3203445

Description：CONN RCPT 68P 0.05 GOLD PCB R/A
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:3c77b05e7c27 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3203445 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 68P 0.05 GOLD PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M50-3203445

Description：CONN RCPT 68P 0.05 GOLD PCB R/A
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：68
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Insulation Color：Black
Insulation Height：0.136" (3.46mm)
Contact Length - Post：0.094" (2.40mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M50-3203445

M50-3203445

Headers, Receptacles, Female Sockets Overview

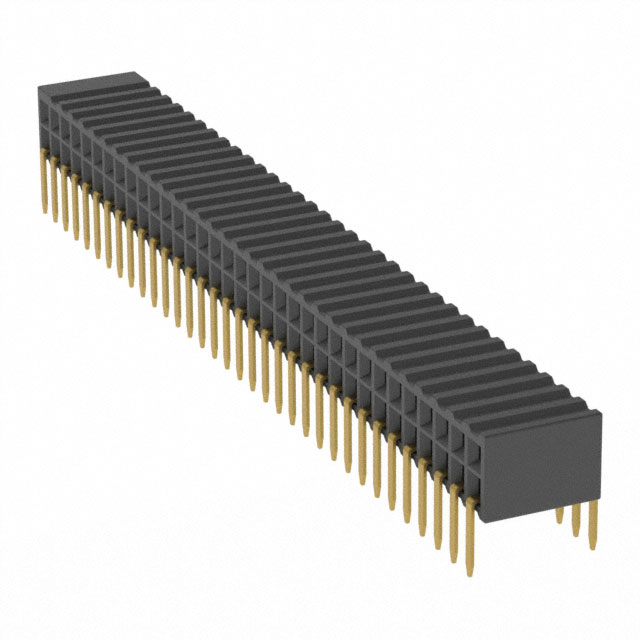

The Harwin M50-3203445 is a 68-position receptacle connector from the Archer M50 series. It features a 1.27mm (0.05 inch) mating pitch and utilizes a double-row configuration for board-to-board or cable applications. The component employs through-hole, right-angle mounting with solder termination. Contacts are made of phosphor bronze with a gold plating finish. The housing is constructed from black polyamide (PA9T) nylon, rated UL94 V-0 for flammability. It supports a working temperature range of -40°C to 105°C and carries a current rating of 1A.

Headers, Receptacles, Female Sockets Feature Summary

Right-angle through-hole mounting design for space-constrained PCB layouts
Gold-plated phosphor bronze contacts ensuring reliable signal transmission
High-density 68-position layout within a compact 1.27mm pitch footprint

Headers, Receptacles, Female Sockets Applications

General electronic interconnects
Medical device assemblies
Telecommunications equipment

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix '45' against official Harwin documentation to confirm the right-angle through-hole variant. Confirm that the 68-pin count matches the required circuit density. Check for end-of-life status or obsolescence notices prior to finalizing procurement plans.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a high-density, right-angle connection is required for PCB stacking or cabling. Ensure the 1.27mm pitch aligns with the mating header specifications. Verify that the through-hole mounting method is compatible with the target assembly process and board thickness constraints.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Archer M50 series, designed for high-reliability interconnect solutions. The series offers various configurations including surface mount and IDC options. The M50-3203445 specifically addresses needs for robust, angled connections in professional industrial and commercial electronics sectors.
