M50-3203845

Headers, Receptacles, Female Sockets Overview

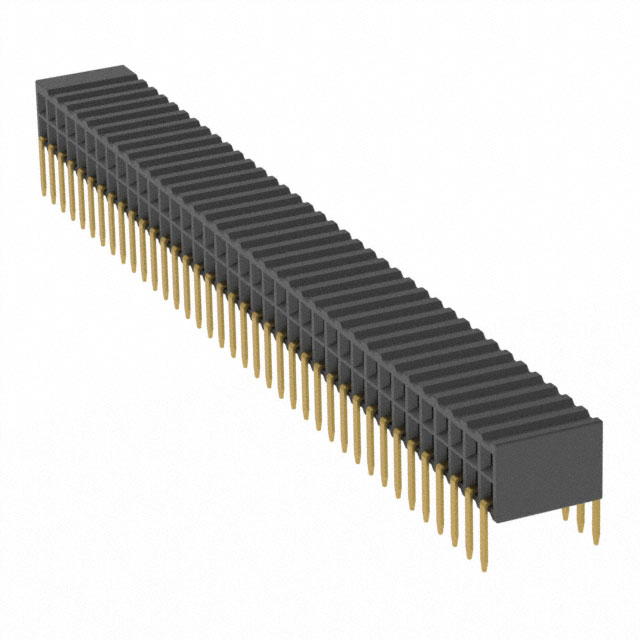

The M50-3203845 is a Harwin ARCHER series socket assembly designed for surface mount technology. It features a dual in-line configuration with 76 positions arranged in two rows of 38 contacts each. The connector utilizes a 1.27 mm (0.05 inch) pitch and operates at right angles to the printed circuit board. Contacts are gold-plated phosphor bronze, rated for 1 A current. The housing is constructed from black liquid crystal polymer (LCP), offering UL 94 V-0 flammability ratings. It supports an operating temperature range from -40°C to +105°C and provides 1 GOhm insulation resistance.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle surface mount design for space-efficient PCB integration
• Dual in-line shrouded structure ensuring secure mating alignment
• Gold-plated contacts on phosphor bronze substrate for reliable conductivity
• High-performance LCP housing material for thermal stability

Headers, Receptacles, Female Sockets Applications

• Wire-to-board interconnections
• Socket assemblies for male header mating
• Industrial control system interfaces
• Consumer electronics internal connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix '45' corresponds to the gold-plated variant when sourcing. Confirm that the right-angle orientation matches the target PCB layout requirements. Ensure compatibility with the corresponding ARCHER male header series for proper mechanical engagement. Check RoHS compliance documentation for final regulatory adherence before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-density, right-angle socket interface is required for SMT processes. The 1.27 mm pitch allows for compact designs while maintaining robust electrical performance. Consider the 76-position count for applications needing extensive signal routing in a single footprint. Verify that the 1 A current rating meets the specific circuit load requirements.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin ARCHER family, known for high-reliability interconnect solutions. The M50 series specifically targets demanding industrial and commercial environments requiring durable surface mount connectors. The product line emphasizes precision engineering and consistent electrical characteristics across various position counts and orientations.

Headers, Receptacles, Female Sockets Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Designers should evaluate other ARCHER series sockets with matching pitch and position counts if replacement is necessary.
