M50-3602542R

Headers, Male Pins Overview

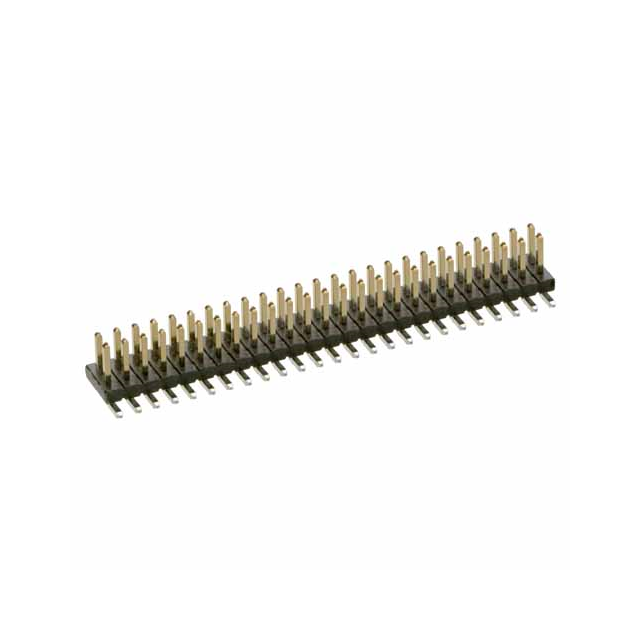

The Harwin M50-3602542R is a surface-mount pin header from the Archer M50 series. It features a 1.27 mm pitch and a 2-row configuration with 50 positions (25+25). The connector utilizes gold-plated brass contacts for reliable signal transmission. Designed for vertical installation on printed circuit boards, it supports wire-to-board applications. The component is supplied in tape-and-reel packaging to facilitate automated assembly processes.

Headers, Male Pins Feature Summary

• Vertical surface-mount design for efficient PCB integration
• Gold-plated contacts ensure durable electrical connectivity
• Tape-and-reel packaging enables high-speed automated placement

Headers, Male Pins Applications

• Wire-to-board interconnections
• Board-to-board stacking systems
• High-density electronic assemblies requiring SMT compatibility

Headers, Male Pins Procurement Notes

Verify that the ordering suffix 'R' corresponds to the tape-and-reel packaging format rather than standard bulk quantities. Confirm the specific reel size and orientation requirements match your pick-and-place equipment specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 1.27 mm pitch is required for space-constrained designs. Ensure the 50-position count aligns with circuit routing needs. Verify that the vertical profile fits within the allowable height restrictions of the target enclosure or adjacent components.

Headers, Male Pins Part Context

This part belongs to the Archer M50 family, which provides versatile interconnect solutions. The series offers various contact counts and termination styles. The M50-3602542R specifically addresses the need for high-volume production through its reel-based supply method while maintaining consistent mechanical performance.

Headers, Male Pins Replacement Considerations

Direct substitutes include M50-3602542P for different plating options or M50-3602542 for bulk packaging. Verify that alternative versions maintain identical pitch, row count, and terminal type to ensure mechanical fit.
