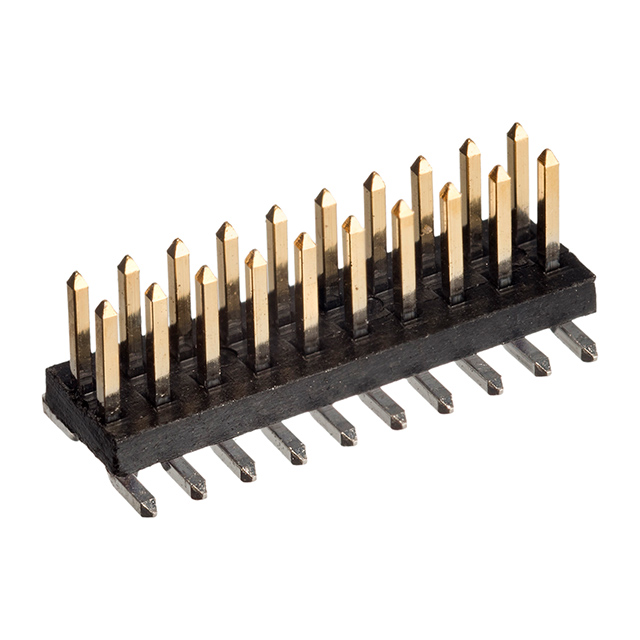

M50-3611042

$2.40

Description：CONN HEADER SMD 20POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Bulk

SKU:2ac6e3cd7d5a Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3611042 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 20POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-3611042

Description：CONN HEADER SMD 20POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：20
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.118" (3.00mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.039" (1.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Thermoplastic
Features：Board Guide
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A
Voltage Rating：250V

Headers, Male Pins datasheet and documents for M50-3611042

M50-3611042

Headers, Male Pins Overview

The Harwin M50-3611042 is a surface mount board-to-board connector from the Archer M50 series. It features a double in-line (DIL) configuration with 20 contacts arranged in two rows of ten. The connector utilizes a 1.27 mm pitch and is designed for vertical, straight mounting on printed circuit boards. The housing incorporates location pegs to assist with precise alignment during assembly. This component supports mating heights ranging from 2.2 mm to 8.5 mm within the broader M50 product line.

Headers, Male Pins Feature Summary

Double row DIL structure with integrated location pegs for accurate board alignment
Vertical surface mount design suitable for automated placement processes
Compatible with mating sockets across a wide range of heights within the Archer M50 series

Headers, Male Pins Applications

Board-to-board interconnections in compact electronic assemblies
High-density connection systems requiring precise alignment
Surface mount manufacturing environments utilizing pick-and-place equipment

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required double in-line configuration and contact count. Confirm that the operating temperature range aligns with the application environment. Ensure compatibility with the intended mating socket height specifications. Check for any specific handling requirements related to the surface mount package type.

Headers, Male Pins Selection Notes

Select this component when a 1.27 mm pitch double row header with location pegs is required. Consider the vertical orientation and surface mount installation style. Evaluate the available mating heights within the Archer M50 series to ensure proper clearance and connection integrity. Verify that the contact arrangement meets the circuit layout requirements.

Headers, Male Pins Part Context

This connector belongs to the Harwin Archer M50 series, which provides various board-to-board solutions. The series offers multiple configurations including single and double in-line styles. The M50 series is characterized by its consistent 1.27 mm pitch and robust mechanical design for reliable electronic connections.
