M50-3612542R

Headers, Male Pins Overview

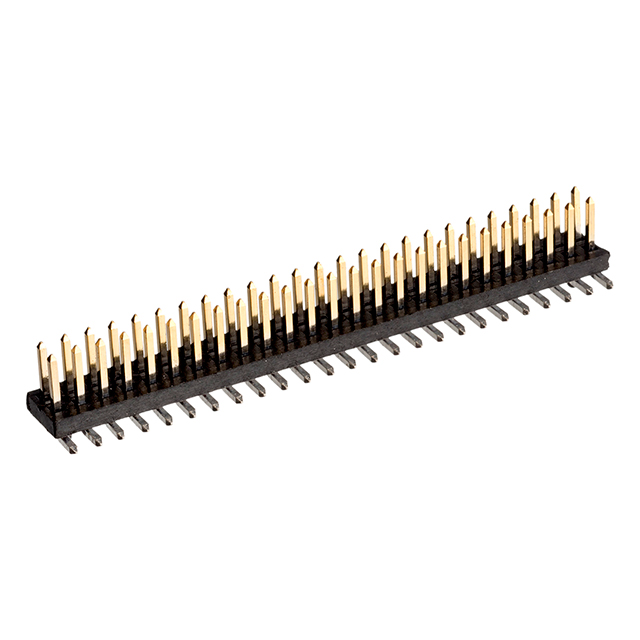

The M50-3612542R is a surface mount connector header manufactured by Harwin Inc. under the ARCHER series. It features a dual in-line configuration with 50 positions and a 1.27 mm (0.05 inch) pitch. The component utilizes gold-plated phosphor bronze contacts for reliable signal transmission. Designed for vertical mounting, it offers a low-profile form factor suitable for space-constrained applications. The housing is constructed from black liquid crystal polymer, ensuring stability across operating temperatures ranging from -40°C to +105°C.

Headers, Male Pins Feature Summary

• Low-profile vertical surface mount design
• Gold-plated phosphor bronze contacts
• Liquid crystal polymer housing material

Headers, Male Pins Applications

• High-density electronic assemblies
• Space-constrained circuit boards
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' against official datasheets to confirm reel packaging status. Ensure compatibility with mating headers within the same ARCHER M50 series. Cross-reference RoHS compliance documentation prior to integration. Confirm lead times as manufacturing schedules may vary. Validate that the vertical orientation matches the target PCB layout requirements.

Headers, Male Pins Selection Notes

Select this component when a high-pin-count, low-profile vertical header is required. The 1.27 mm pitch supports dense interconnects while maintaining electrical integrity. Gold plating ensures durability in repeated mating cycles. Consider the thermal range of -40°C to +105°C for environmental suitability. Verify mechanical clearance for the vertical profile during PCB stack-up planning.

Headers, Male Pins Part Context

This part belongs to the Harwin ARCHER M50 product line, which specializes in compact interconnect solutions. The series is engineered for modern electronics requiring high density and reliability. Components in this family share standardized dimensions and contact configurations to ensure interoperability across various board designs and system architectures.

Headers, Male Pins Replacement Considerations

Consult official Harwin documentation for verified substitute part numbers. Generic equivalents may not match the precise 1.27 mm pitch or low-profile height specifications. Ensure any replacement maintains the same contact material and plating standards for consistent performance.
