M50-3630542

Headers, Male Pins Overview

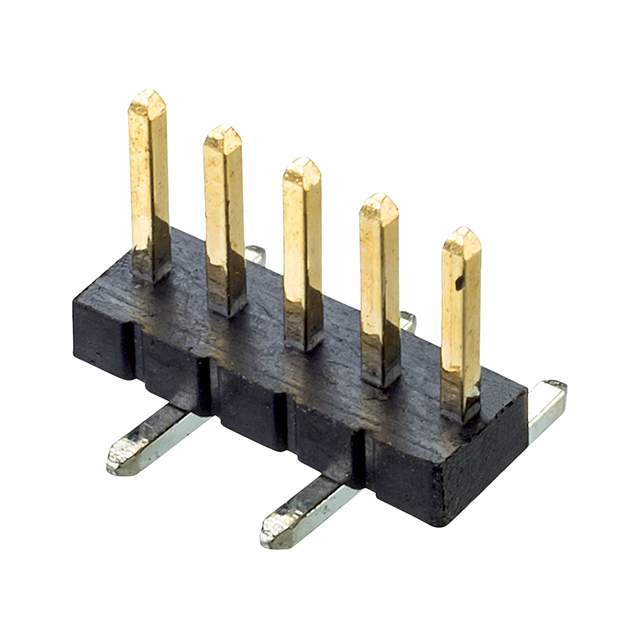

The Harwin M50-3630542 is a surface mount straight pin header designed for board-to-board connections. It features a 1.27 mm pitch and contains five contacts arranged in a single row. The connector utilizes square contact shapes with gold plating on the mating interface to ensure reliable signal transmission. This component is engineered for vertical mounting on printed circuit boards, providing a secure mechanical and electrical interface for mating sockets within the Archer M50 series.

Headers, Male Pins Feature Summary

• Surface mount straight configuration for vertical PCB integration
• Gold-plated square contacts for durable mating cycles
• Single-row architecture supporting compact board layouts

Headers, Male Pins Applications

• Board-to-board interconnections
• High-density electronic assemblies
• Consumer electronics manufacturing

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm surface mount orientation and contact count. Ensure compatibility with mating socket heights ranging from 2.2mm to 8.5mm as specified in the Archer M50 series guidelines. Cross-reference technical drawings for precise footprint dimensions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row surface mount header is required for 1.27 mm pitch applications. Consider the gold finish for corrosion resistance and the straight form factor for standard vertical assembly needs. Evaluate the five-contact capacity against circuit requirements to ensure adequate connectivity without excessive board space usage.

Headers, Male Pins Part Context

This part belongs to the Harwin Archer M50 series, which offers various mating heights and styles including SIL and DIL configurations. The series is known for its precision engineering and reliability in demanding electronic environments. The M50-3630542 specifically addresses the need for a compact, surface-mountable solution within this broader product family.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include variations with different contact counts or mating heights, such as the M50-3530542 for through-board applications. Verify that any replacement maintains the 1.27 mm pitch and compatible contact finishes to ensure functional interchangeability.
