M50-3631042R

Headers, Male Pins Overview

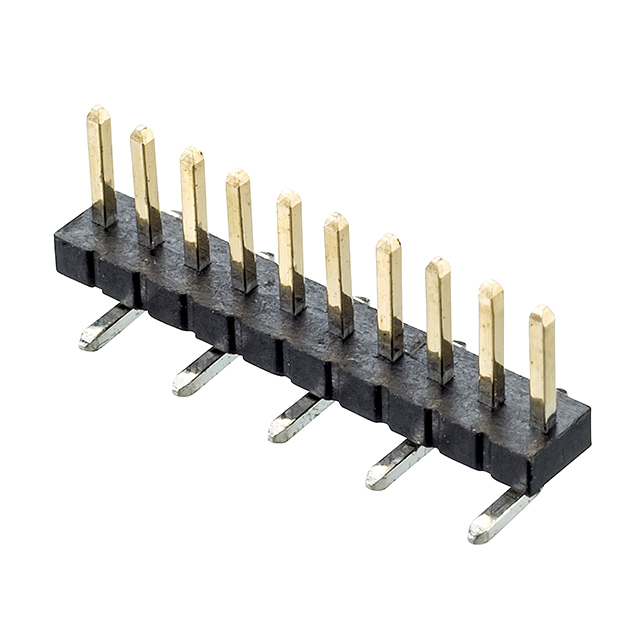

The M50-3631042R is a surface-mount pin header from the Harwin ARCHER M50 series. It features a single row with 10 positions and a 1.27 mm pitch. The connector utilizes gold-plated brass contacts and has a mating pin height of 3 mm. Rated for 1 A current and 250 V voltage, it operates within a temperature range of -40°C to +105°C. The housing is black thermoplastic with UL 94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Single-row surface-mount design for compact PCB integration
• Gold-plated contacts ensure reliable signal transmission
• Straight vertical orientation facilitates board-to-board connections

Headers, Male Pins Applications

• Wire-to-board interconnections
• Board-to-board signal routing
• Embedded system hardware interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' against manufacturer documentation to confirm reel packaging or variant status. Ensure compatibility with mating connectors regarding pin height and pitch. Cross-reference RoHS compliance details directly with the latest datasheet before procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring low-profile surface-mount headers. The 1.27 mm pitch suits dense circuit layouts. Verify that the 1 A current rating meets system requirements. Confirm straight mounting angle aligns with mechanical constraints.

Headers, Male Pins Part Context

This part belongs to the Harwin ARCHER M50 family, designed for high-reliability electronic interconnects. The series offers various configurations including through-board and IDC options. It targets industrial and commercial embedded applications requiring robust performance.

Headers, Male Pins Replacement Considerations

Direct substitutes include M50-3631042. Verify mechanical dimensions and electrical ratings match before substitution.
